mini media converter fiber optic FTTH media converter for network
OFS-WS01/02-20
minimum order
1 piece
Country of Origin
SHENZHEN,GUANGZHOU,HONGKONG
Quantity
- Model Number:OFS-WS01/02-20
- Type:Media converter
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTx
- Warranty Time:1 year
- Keyword:Media converter
- Fiber port rate:100M
- RJ45 rate:10/100M adaptive
- Forwarding Mode:Store-and-Forward
- Forwarding Rate:1488000pps/port
- Power:Output:DC 5V 1A
- Power consumption:2.5W
- Working temperature:-10~55℃
- Storage temperature:-20~75℃
- Product size:94.5*70*26mm
- Single-Mode Fiber:Max 120km
- Multi-Mode Fiber:Max 5km
- No. of Fiber:1 or 2
- Application:Fiber connect
- Power Input:2.5W
Product Description
OFS-WS01/02-20

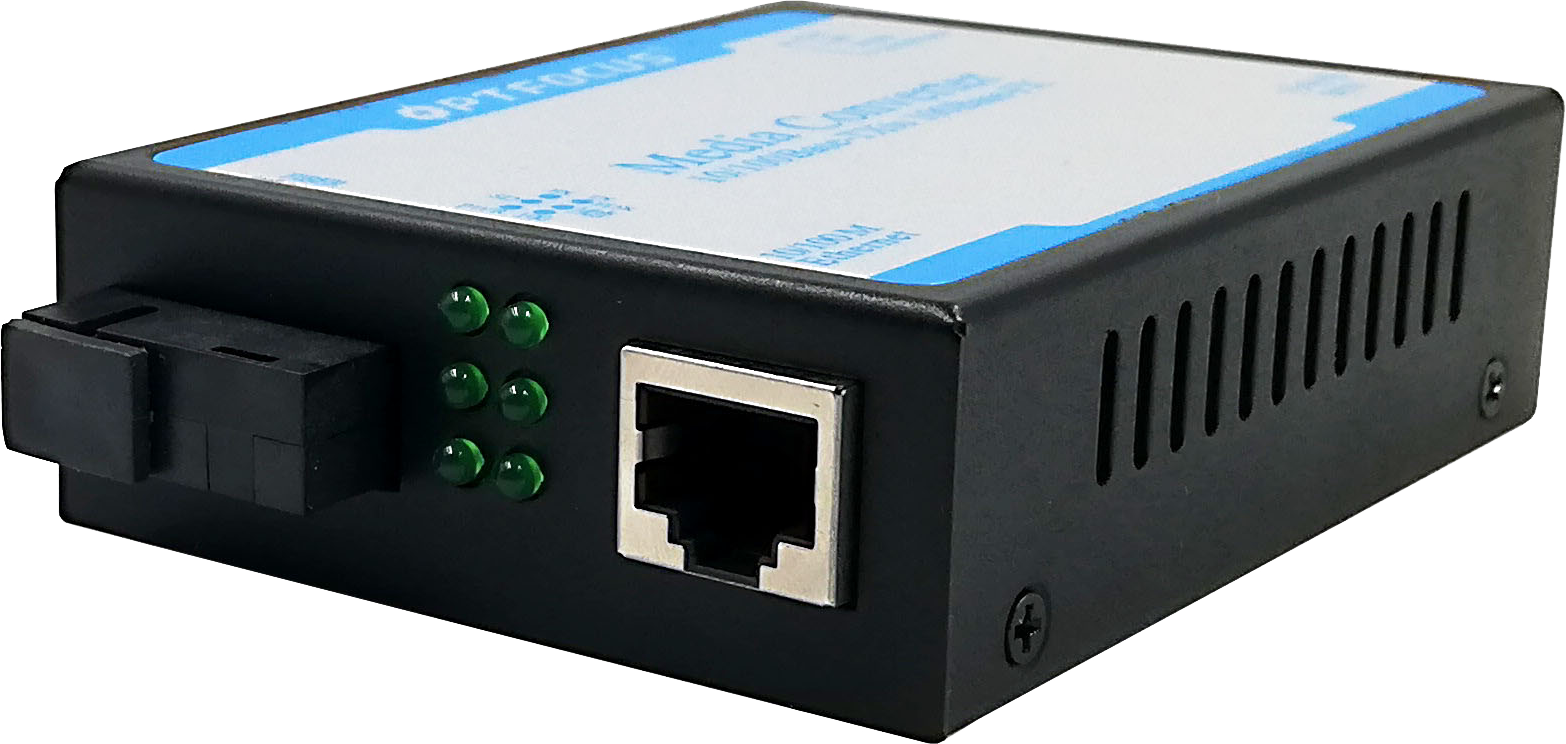

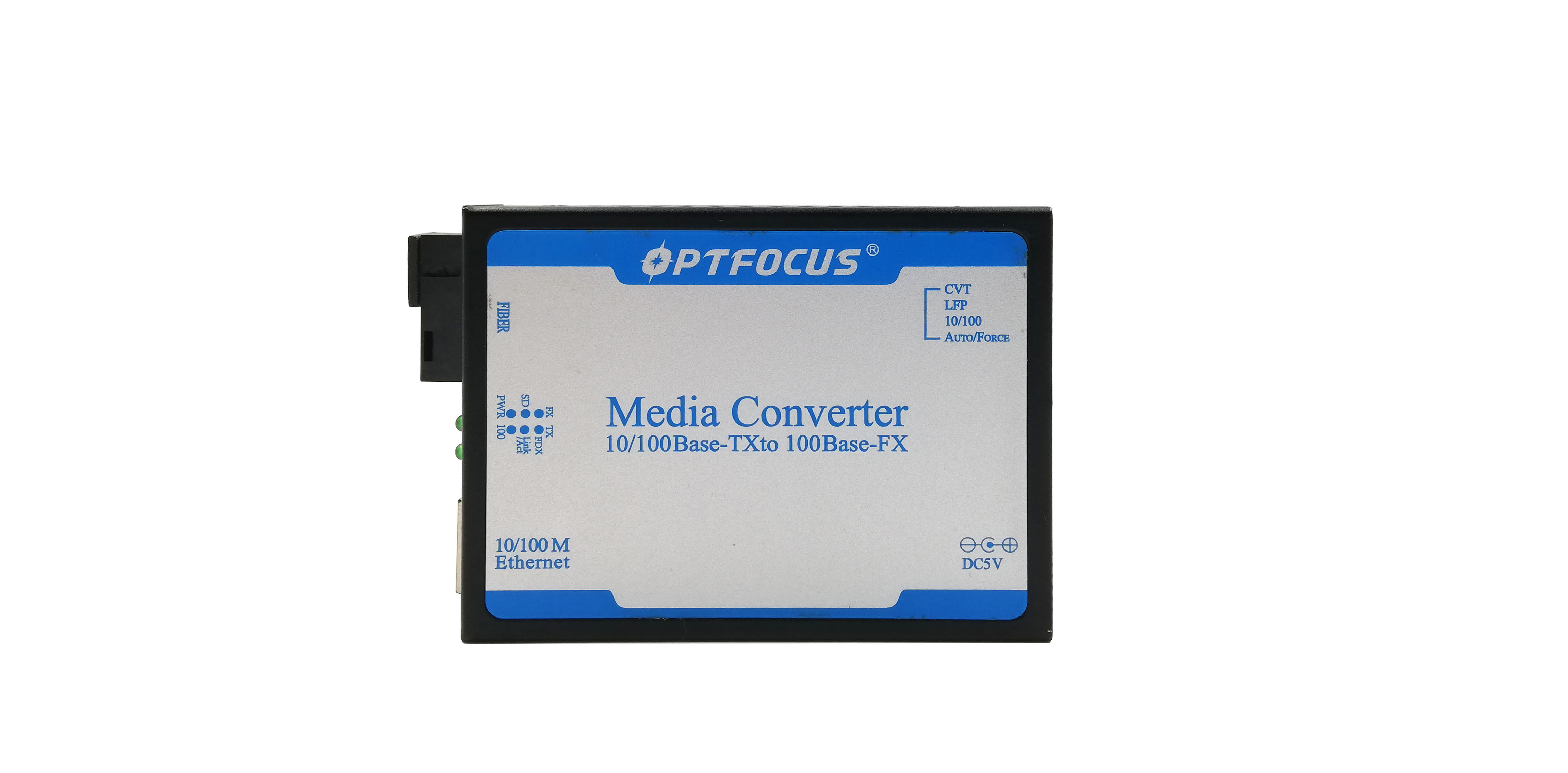

OFS-WS01/02-20 Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED
indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users. OPTFOCUS Series Converters could be used alone;
indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users. OPTFOCUS Series Converters could be used alone;
Specification
Product Name | 10/100 M Media Converter |
Product Model | OFS-WS01/02-20 |
Connector | Dual Fiber: 1* 100Mbps，SC/ST/FC Optional RJ45: 1*10/100Mbps,Auto MDI/MDI-X |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
Fiber Media | Fiber ( Multimode): 50/125, 62.5/125μm（the max distance up to 2km or 5km） Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm（the max distance up to 100km） |
Forwarding Mode | Store-and-Forward |
Forwarding Rate | 1488000pps/port |
Operating standard | IEEE802.3,IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x |
Power Supply | Input:AC 100~250VOutput:DC 5V 1A ,（default） or Input:DC:-36V~-72V；Output:DC 5V 1A ,（Optional） USB power supply (optional) |
Power consumption | 2.5W |
LED | Power, Link/Act, TX 100、FDX、 Link/Act. |
Working Environment | Working temperature: -10～55℃ ; Storage temperature: -20～75℃ Relative Humidity: 5%~95 %( no condensation) |
Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
Packing List | 1× Media Converter 1×User Manual/Certificate of quality/Warranty card 1×power adapter |
MTBF | 100,000 hours |
Weight & Size | Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H): 94.5*70*26mm Packing size(L×W×H):215*138*56mm |
Warranty | 1-years |
Main Features
Features
1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps fiber
Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
UTP port supports MDI / MDI-X auto crossover.
Supporting 1552 bytes packet
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Data Transfer Rate:
- TP: 10/100Mbps - FX: 100Mbps
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act
Supports link fault pass through function. Design of internal or external power supply for selection by end-users
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
UTP port supports MDI / MDI-X auto crossover.
Supporting 1552 bytes packet
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Data Transfer Rate:
- TP: 10/100Mbps - FX: 100Mbps
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act
Supports link fault pass through function. Design of internal or external power supply for selection by end-users
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
