100gb fast ethernet poe fiber optic switch media converter price
- Model Number:OFS-PE-SF1T8
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Color:black or silver or customized
- PoE power:15.4W per port(IEEE802.3af)
- Processing types:Half-duplex back pressure,IEEE802.3x full- duplex flow control
- Buffer memory:2.7M embedded memory per unit
- Network latency:Less than 20us for 64-byte frames in Store-and- forward mode
- Fiber Switch Type:POE fiber switch
- Power:AC90-260V input
- Power budget:96W/120W optional
- PoE power consumption:30W /port
- Ports:8 port,10/100/1000M RJ45 (PSE)
OFS-PE-GT8
8ports 10/100/1000M POE Switch
Description:
OFS-PE-GT8 Ethernet switch with 8*10/100/1000MbpsRJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
OFS-PE-GT8’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP phone, wireless AP and other PoE supported devices.. Power input also chooses industry-standard types of power.
Technical Specifications
Product Name | 8-port10/100/1000MbpsPorts |
Product Model | OFS-PE-GT8 |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3x; |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Performance Specification | Bandwidth:16Gbps |
PoE Specification
| PoE Standard: IEEE802.3af/ IEEE802.3at |
PoE ports: 8 port support PoE | |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
PoE port Auto detect AF/AT devices | |
Output Voltage: DC48V | |
Power Pin Assignment:1/2+;3/6- | |
Power Type: End-span( Mid-span optional) | |
Forwarding Mode | Store-and-Forward |
LED Indicators | Power: PWR; Link;POE ; Link/Act |
Power Supply | Input Voltage: DC52V (48~55V) |
Feature:
l8 Port10/100/1000Mbps with Auto Uplink™
l8Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
lAutomatic MAC address learning and aging
l10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
lLED indicators for monitoring power/link/activity
lSupports10/100/1000Mbps-Full/Half-duplex
lSupports Wall-mount and DIN-Rail installation ,Optional.
lSupports Broadcast Storm Control
lSupports Relay output for power failure
lExcellent heat elimination without cooling fan.
lApply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
lHarsh environment or higher requirement
l-10℃-55℃operating temperature range.
Other Specifications :
Working Environment | Working temperature: -10~55℃ ; Storage temperature: -20~75℃ Relative Humidity: 5%~95 %( no condensation) |
Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
Packing List | 1× Media Converter 1×User Manual/Certificate of quality/Warranty card 1×power adapter |
MTBF | 100,000 hours |
Weight & Size | Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H): 190mm×104mm× 29mm Packing size(L×W×H) 306mm× 18.2 cm× 55mm |
Warranty | 1-years |
Working Environment | Working temperature: -10~55℃ ; Storage temperature: -20~75℃ Relative Humidity: 5%~95 %( no condensation) |

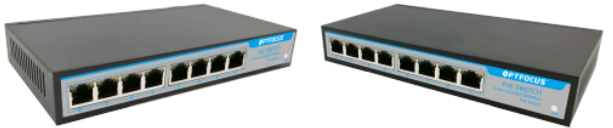

Physical Pic Reference :

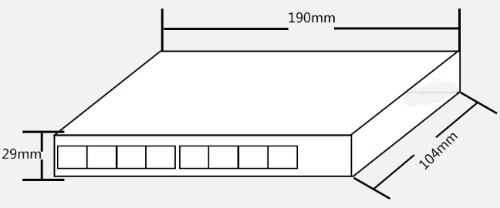

Chassis Dimension:

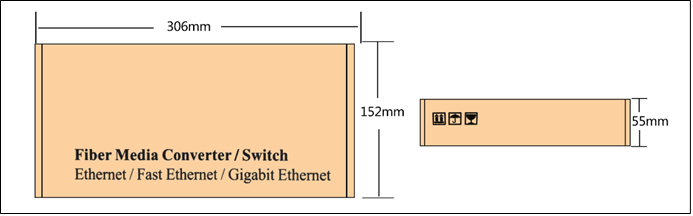

Package Dimension:

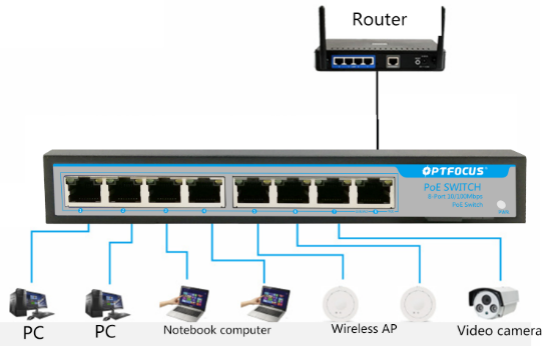

Solutions:
Power Supply Standard:
Ordering Information:
Product name | Product name |
OFS-PE-GT8 | 8 Port10/100/1000M Switch,PoE,external PS |
Payment
Certifications
Customer Evaluation
FAQ
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
