ASIC Chip Multi Layer 24ports 10/100/1000M +4 SFP ports Fiber Switch

OFS-MXF4GT24-I

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFS-MXF4GT24-I
Type:Fiber optic media converter
Place of Origin:Guangdong, China
Brand Name:Optfocus / OEM
Use:FTTX
Product name:24 ports 10/100/1000M +4 SFP ports Fiber Switch
Fiber Media:Single mode/ multi mode
Application:FTTX Network, business network
Model Number::OFS-MXF4GT24-I
Backplane bandwidth:128Gbps
Number of layer:3
Processor:RISC 400MHz
Fixed port:24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports
Packet forwarding rate:95.232Mpps
Keywords:24 ports 10/100/1000M +4 SFP ports Fiber Switch
No. of Fiber:4.

ASIC Chip 24ports 10/100/1000M +4 SFP ports IPv4/IPv6 Routing Fiber Switch

Product Brief Introduction

L3 24+4 10Gigabit Ethernet Switch is standard third-layer non-blocking switch. Provides 24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports. Based on high-performance ASIC chip technology, the modular structure design, which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. At the same time, L3 24+4 10Gigabit Ethernet Switch provide a complete IPv4/IPv6 routing, including tunnel and IP multicast.The user can set all kinds of functions of switch through the Web, SNMP and so on. L3 24+4 10Gigabit Ethernet Switch very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.

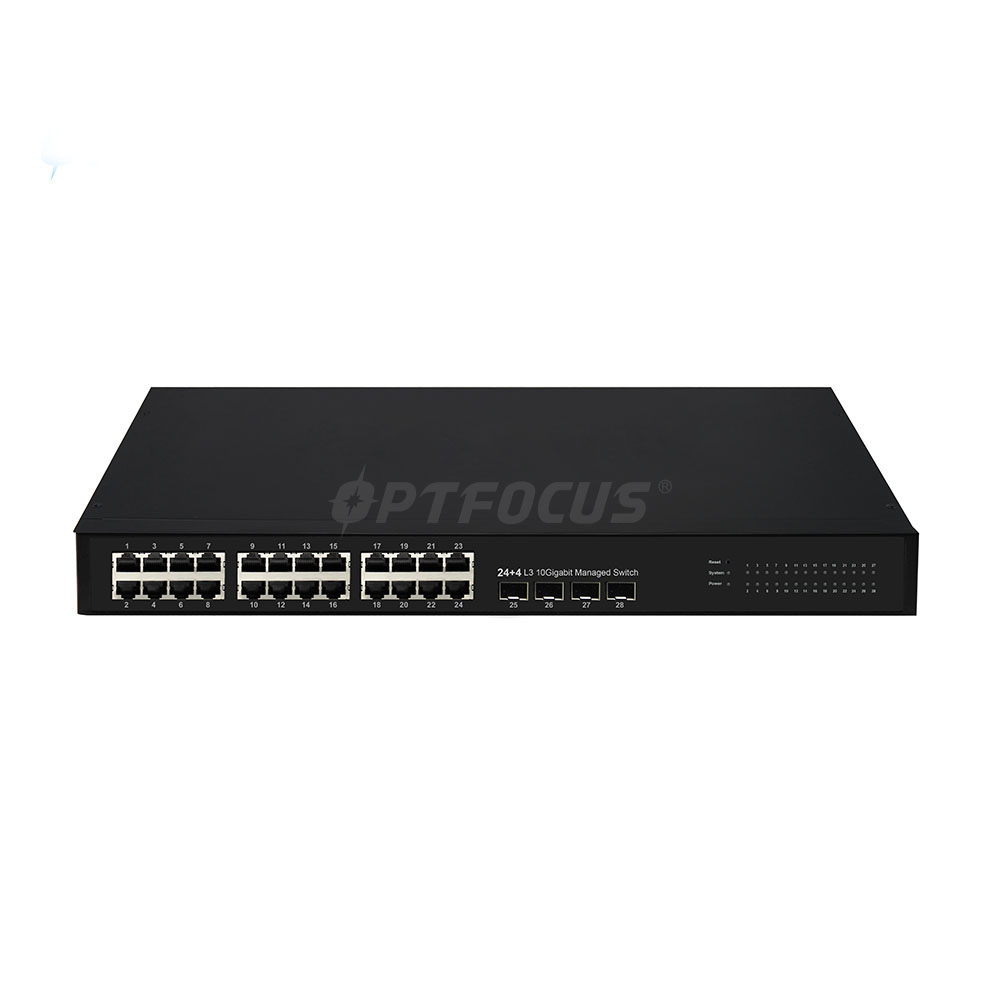

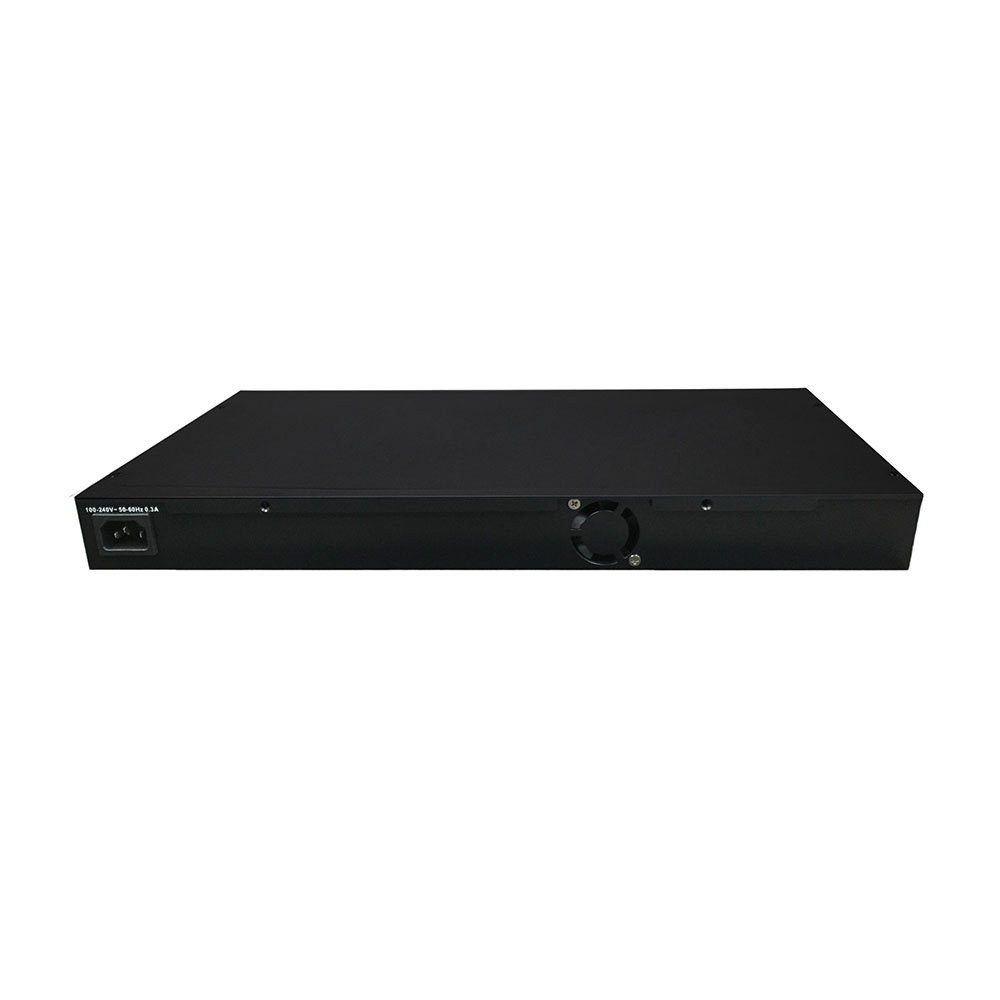

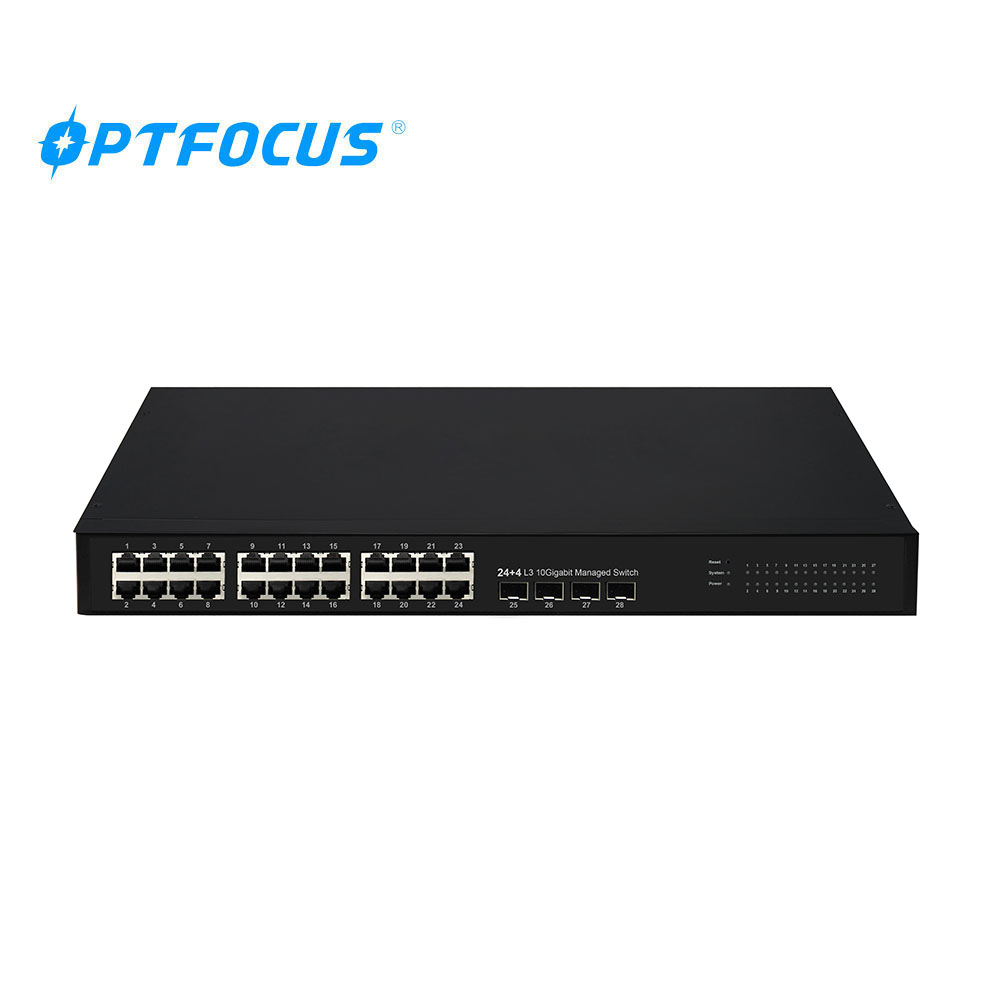

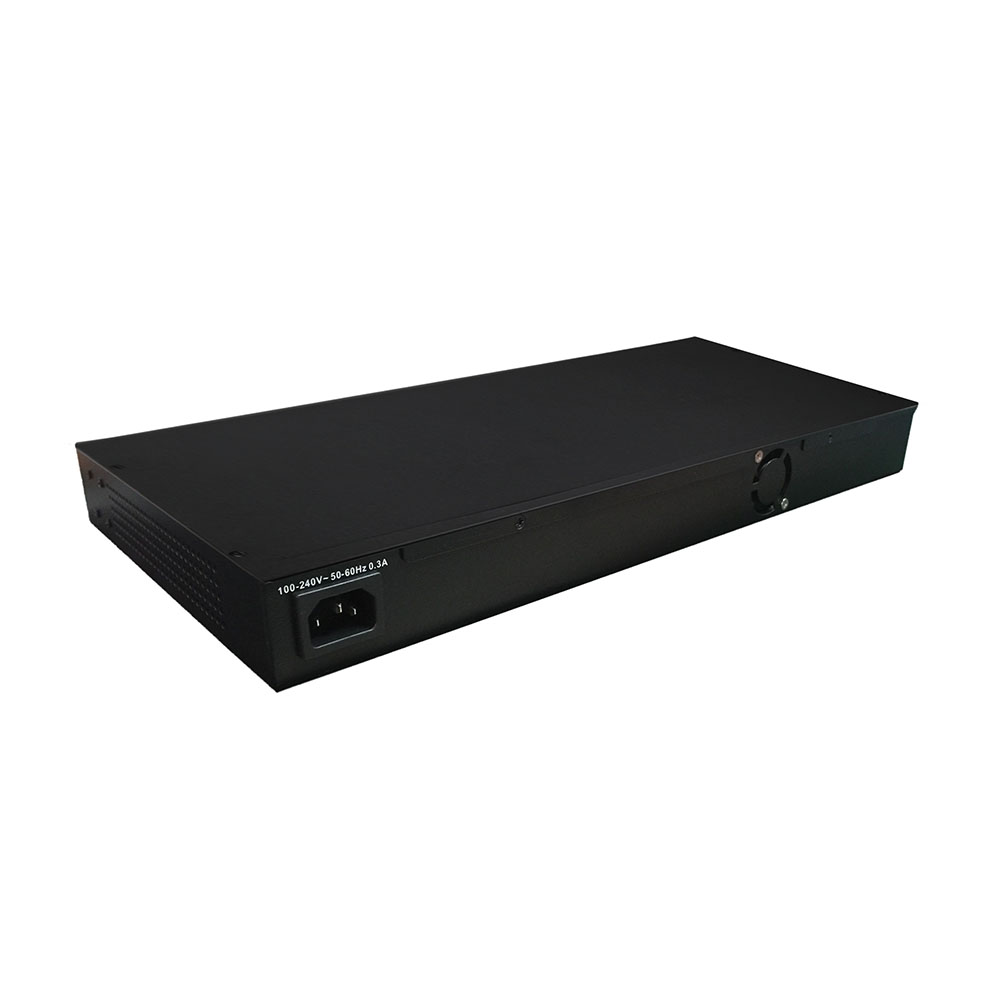

Details Images

Specifications

The product model	L3 24+4 10Gigabit Ethernet Switch
Basic characteristics
Fixed port	24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports
Backplane bandwidth	128Gbps
Packet forwarding rate	95.232Mpps
Processor	RISC 400MHz
Flash memory capacity	8MB
The memory capacity	128MB
Address table	16K
Product characteristics
Spanning tree	Support STP, RSTP, MSTP Support PVST/PVST+
VLAN	Support port-based VLAN Support MAC-based VLAN Support 802.1Q labeled VLAN Support for Super Vlan Support for Private Vlan Support for the GVRP dynamic VLAN configuration Support QinQ and flexible QinQ Support for Voice VLAN
Flow control	Based on a standard IEEE 802.3x flow control Using IEEE 802.1Qbb priority flow control Support CAR function
Broadcast control	Restraining broadcast storm, stop sending so long as reaching a critical point
multicast control	IGMP Snooping multicast message automatic monitoring
multicast routing	IGMP v1/v2/v3, MLDv2 PIM-SM, OLINK&PIM-DM DVMRP (Distance Vector Multicast Routing Protocol) GMRP (multicast dynamic registration protocol)
Port binding	Each group of a maximum of 8, while support 128 group LACP dynamic or static polymerization
Port mirroring	Support based on flow classification mirroring and port mirroring
Stacked	Stacked 16 hard, soft stacking 32 Using clustering techniques, with a unified centralized management of IP address to do address resource saving
Routing management	Static routing RIP v1/v2, OSPFv2, BEIGRP (compatible with Cisco EIGRP), BGPv4, ISIS, BGP Anti virus intelligent routing function
Strategy routing	Support based on IP strategy routing
The proxy function	Support Proxy ARP, DNS Proxy
Redundancy backup	Support for VRRP, HSRP Hot Standby Router Protocol
Characteristics of DHCP	DHCP Server, DHCP Client and support DHCP relay
Function of NAT	Support the static or dynamic NAT address translation function
Safety characteristics	IEEE 802.1x port certification, PKI certification Port Security (Port Security) function Hardware support for IP ACL ACL ACL, MAC, Vlan Hardware support for port based user IP+MAC+Vlan ID+ user account a variety of factors combined to bind Support IP Source Guard Support WEB interface user authentication Remote RADIUS, TACACS+ certification User classification management and password protection Net shield technology Safety control technology Policy control list
Quality of service	IEEE 802.1Qau congestion mechanism Each port 8 send queue mapping 802.1p 8 priority WRED, WFQ, SP and FIFO queue scheduling algorithm Best-Effort Service Differentiated Service Strict Priority Weighted Round Robin First come first served TOS to mark RTS
Network management	SNMP v1/v2/v3 RMON (1,2,3,9 group) Telnet WEB interface Support for cluster management Support SSH Support for PDP (compatible with Cisco CDP.) To support the fan, temperature, system log, hierarchical alarm
Physical characteristics
Appearance size	440x230x44(mm)
Power characteristic	AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power	80W
Indicator lamp	Power indicator, indication of system, connecting / transceiver instructions
Environment humidity / temperature	0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation

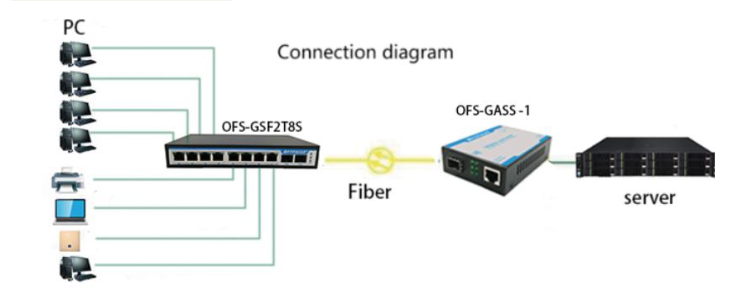

Solution

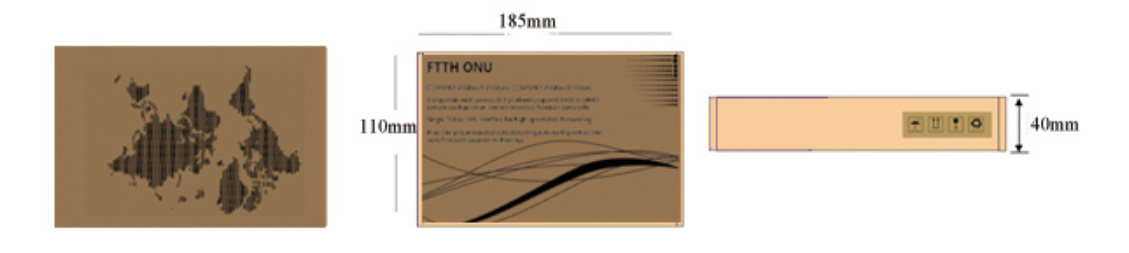

Packaging & Delivery

Related Products

Customer Feedback

View of the Company

Exhibition and Trade Show

FAQ

1.What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.

2. What is your payment terms?

Trade assurance ,T/T, West Union or Cash.

3. What is your warranty time

We promise 2 years' warranty for all products shipped from us.

4. What is the lead time?

For usual products. We keep stock, could ship 1-3 days after PO. For big quantity and special products. Please check lead time with our sales representative.

5. Could I use our own logo and label?

Yes, we could provide a OEM service and make the products with your own label.
