1000m Poe Switch with Oem Service 16*10/100/1000 RJ45 Wireless Wifi AP POE Router Module Gigabit Fiber Switch /slot 20km

OFS-GSF2T16

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFS-GSF2T16
Type:Fiber Switch
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS
Use:Data Center, fiber optic network
Warranty Time:1 Year
Network:Wireless Lan, Ip, POE
Product Name:Gigabit fiber switch /Slot
Fiber port:LC,SC,ST,FC Optional
Network Media:1000BASE-TX: Cat6 or later UTP(≤100 meter)
Connector:8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber Slot
Fiber Media:Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100/120KM
Forwarding Mode:Store-and-Forward
Power Supply:Input: AC100 ~ 250V, Output:DC12~15V.
Environment temperature:0 ~ +55℃
Transmission Distance:20km

1000m poe switch with oem service 16*10/100/1000 RJ45 wireless wifi AP POE router module

Product Description

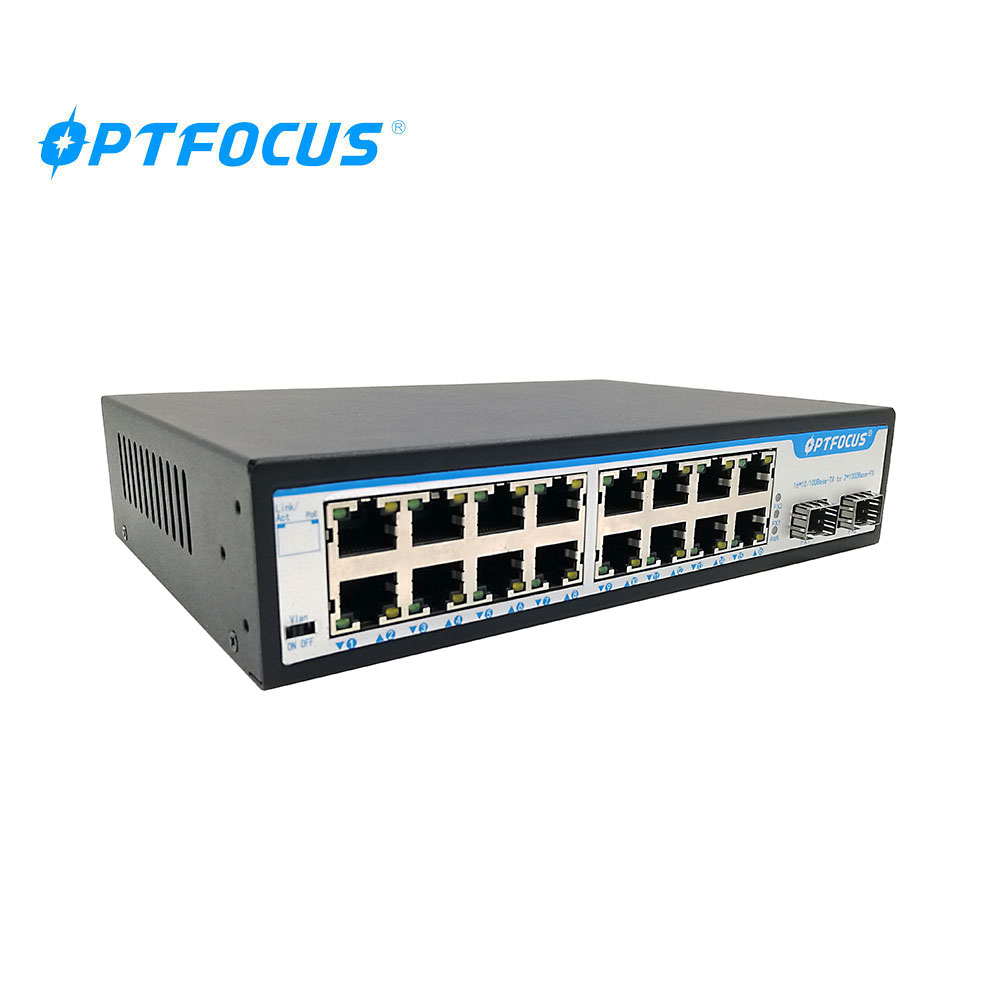

This series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps Optical fiber ports and 16*10/100/1000MbpsRJ45 ports.

It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.

High availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.

Features

Ø 16 port 10/100/1000Mbps with Auto Uplink™, 2 port 1000Mbps Fiber Slot

Ø Automatic MAC address learning and aging

Ø 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X

Ø LED indicators for monitoring power/link/activity

Ø Supports10/100/1000Mbps-Full/Half-duplex

Ø Excellent heat elimination without cooling fan.

Ø Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

Ø Support dual power redundancy(optional)

Ø The built-in 12V lead acid battery charging circuit. (optional)

Technical parameter list

Product Name	16-port 10/100/1000Mbps + 2-port 1000Mbps Fiber Slot
Product Model	OFS-GSF1T16-20
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Fiber port	LC,SC,ST,FC Optional
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100/120KM
Performance Specification	Bandwidth: 20Gbps Packet Forwarding Rate:1488000pps/port MAC Address Table:4K
Forwarding Mode	Store-and-Forward
LED Indicators	Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8)
Power Supply	Input: AC100 ~ 250V, Output:DC12~15V.
Max power	7W
Environment temperature	0 ~ +55℃
Storage temperature	-20 ~ +70℃
Humidity	5% ~ 90%

Packaging & Shipping

Packaging & Shipping

What kind of packaging and shipping do you provide?

Professional Packaging

Fast & Safety Shipping——Worldwide

Standard Export carton

1. Inner: Neutral brown carton or box

2. Outer: Internationally standard package carton or box with several lays and thin plastic film surround the carton or box
