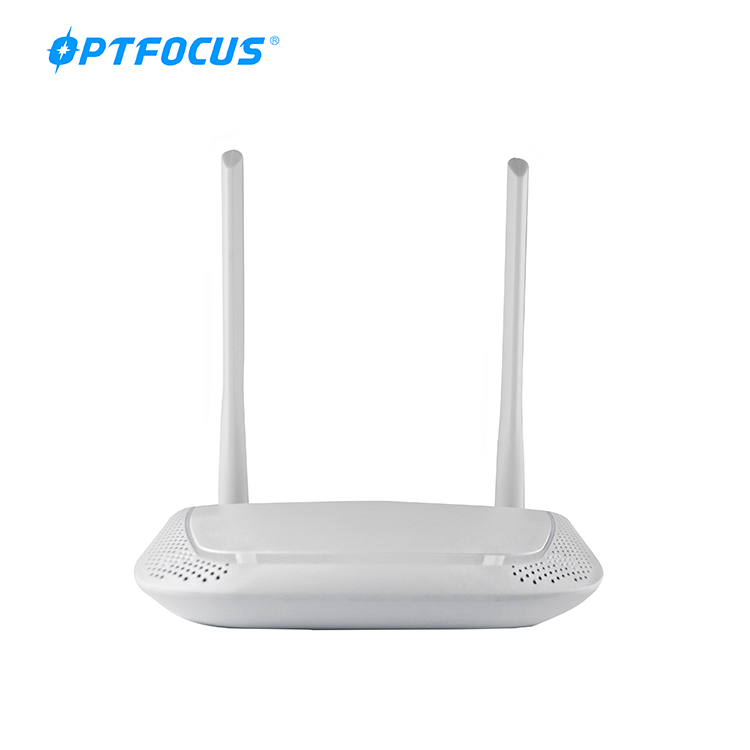

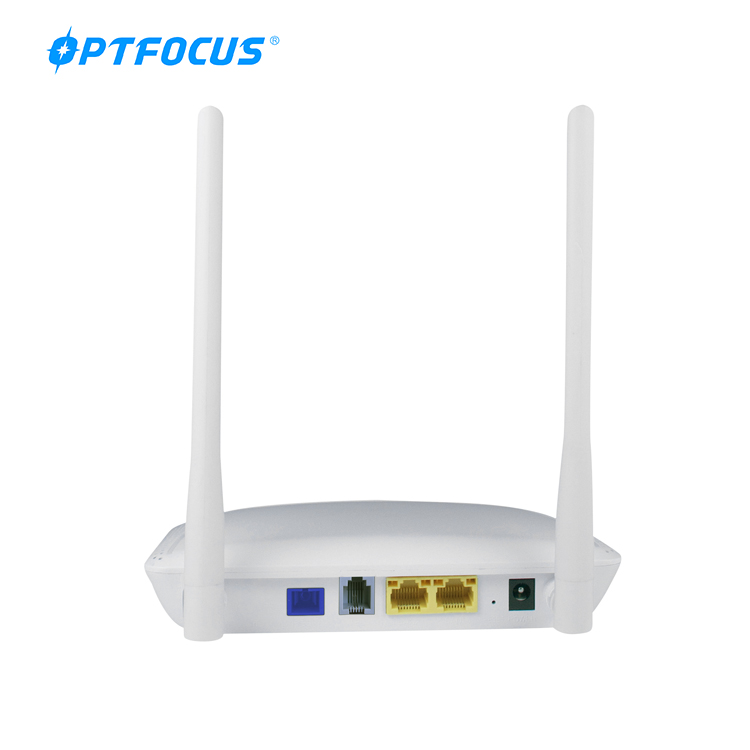

2019 1GE 1FE WiFi VOIP Ftth Fiber Optic Gepon Xpon Epon Onu Sfp RTL Chipset Compatible with Most Brand OLT Like HUAWEI ZTE
- Model Number:OFSX622-VW
- Place of Origin:Guangdong, China, Guangdong, China
- Brand Name:OPTFOCUS
- Chipset:RTL
- Uplink:1*EPON interface
- Downstream LAN interface:1*10/100/1000Mbps auto adaptive, rj45
- Compatible:Most brand OLT equipment
- Operating temperature:0- +55℃
- Transmission Distance:20km from OLT
- Wavelength:Tx 1310nm, Rx 1490nm
- Power supply:DC +12V, external AC-DC power adapter
- Warranty:1 Year
2019 1GE 1FE WiFi VOIP Ftth Fiber Optic Gepon Xpon Epon Onu Sfp RTL Chipset Compatible with Most Brand OLT Like HUAWEI ZTE
Are you looking for a EPON GPON or XPON ONU to your network?

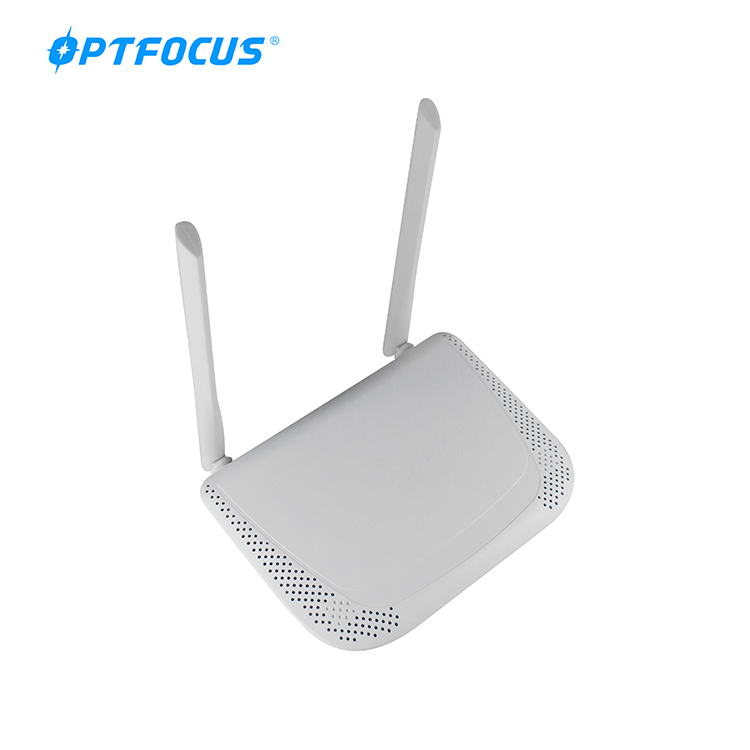

If so, you can take this OPTFOCUS OFSX611-VW MINI EPON GPON ONU into consideration.
This OPTFOCUS OFSX611-VW is made of Fashion Diamond shape by plastic, which keep your XPON ONU cool, not like normal EPON GPON ONU. This XPON ONU designed by RTL chipset for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. And it fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. It Fully compatibility with most brand OLT based on Broadcom/PMC/Cortina chipset.
This OPTFOCUS OFSX611-VW MINI EPON GPON ONU is worth buying! So don't hesitate, just take action!
lPlug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology
ll Integrated OAM and TR069 remote configuration and maintenance function
ll Support rich QinQ VLAN function and IGMP snooping multicast feature
ll Integrated line testing compliant with GR-909 on POTS
ll Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
ll For small and medium-sized operators, VOIP services are customized
ll Support IEEE802.11n 2T2R WiFi function
2019OPTFOCUS OFSE611-2 | ||
Tech parameters | Description | |
Up-link interface | 1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism | |
Wavelength(nm) | TX 1310nm,RX 1490nm | |
Fiber connector | SC/UPC connector | |
Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface | |
Indicator LED | 11 | |
DC supply interface | input+12V 0.5A | |
Power | ≤5W | |
Operating temperature | -5~+45℃ | |
Humidity | 10~90%(non-condensation) | |
Storage temperature | -30~+70℃ | |
Dimension | 191*133*34mm(mainframe) | |
Weight | 0.35Kg(mainframe) | |
symbol | color | Meaning |
PWR | green | ON: successfully connect with power OFF:fail to connect with power |
PON | green | ON: ONU port Link link correctly Flicker: PON registering OFF: ONU ports link link faulty |
LAN | green | ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
LOS | red | Flicker: fail to connect with PON port OFF: detected fiber to input |

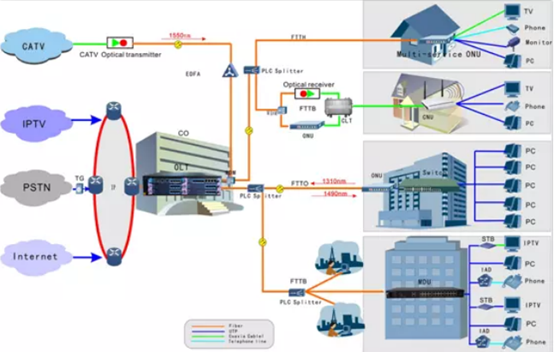

Typical Solution: FTTH, FTTx
Typical Business: INTERNET
What types of connector does the power adapter have?
EU/ USA/CN/USA/UK/IN etc
What kind of packaging and shipping do you provide?
Professional Packaging
Fast & Safety Shipping——Worldwide
Standard Export carton
1.Inner: Neutral brown carton or box
2. Outer: Internationally standard package carton or box with several lays and thin plastic film surround the carton or box
