Cheapest price ZTE Gpon Gepon Epon 1Ge Onu Same With zte gpon ont onu,huawei gpon onu,gpon onu
- Model Number:OFSE611
- Place of Origin:China
- Brand Name:OPTFOCUS
- Wavelength:Tx 1310nm, Rx 1490nm
- Optical output power:-1~+4dBm
- Power consumption:≤2.5W
- Ethernet:1.25G
- Distance:20KM
- PON port::1
- Dimension:83*83*25mm
- DC power supply:+12V, external AC-DC powe
- Weight:0.25kg

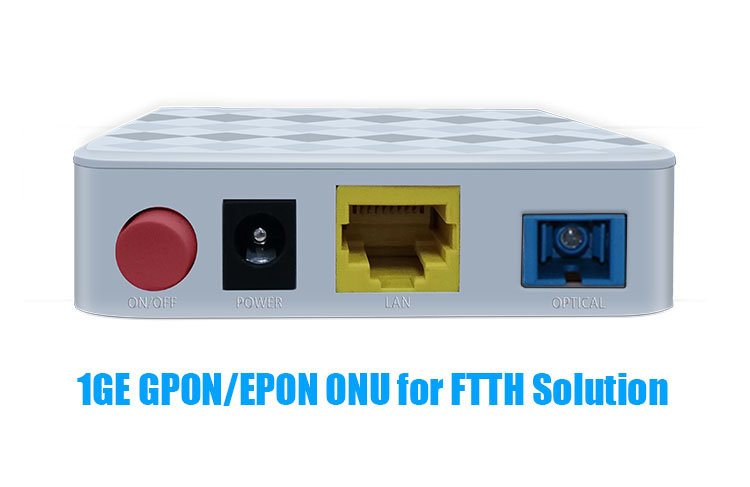

Cheapest price ZTE Gpon Gepon Epon 1Ge Onu Same With zte gpon ont onu,huawei gpon onu,gpon onu
OFSE611
1GE port EPON ONU for FTTH solution
Description:
OFSE611 is a mini EPON ONU terminal device , which applies to pure broadband access.It adopts mini-type compact structure design with high-integration and can provide 1 GE(RJ45)interfaces. Supports the technology of layer 2 Ethernet switch and it’s easy to maintenance and manage.It can be applied to FTTH/FTTP access application for resident and business users.and it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V3.1).
Technical Specifications
Technical items | Description |
Optical property | |
Upstream PON interface | 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Optical output power | -1~+4dBm |
Receiving sensitivity | <-26dBm |
Farthest distance | 20km between OLT and ONU |
Optical interface | SC/UPC connector |
Downstream LAN interface | 1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
Layer 2/3 switch | Support IEEE802.1Q VLAN |
Support speed rate inhibition of broadcast packet at ONU | |
IEEE 802.3X flow control | |
Support 16 multicast addresses at each LAN port | |
Security strategy | Support AES-128,data encryption for both upstream and downstream Support dynamic update of key |
Management maintenance | Centralized OLT management based on OAM |
WEB,CLI | |
Upgrade software remotely | |
Hardware information | |
Indicators | 4 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
DC power supply | +12V, external AC-DC power adaptor |
Chipset | zte chipset |
Power switch | 1 |
Power consumption | ≤2.5W |
Operating condition | Operating temp: -5~+55℃ |
Storing condition | Storing temp: -30~+60℃ |
Dimension | 83mm*83mm*25mm(length*width*height) |
Net weight | 0.24Kg |
Feature:
lPlug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
lSupport triple churning encryption request
lSupport DBA reporting mechanism request
lSupport OAM remote configuration maintenance function
lSupport the remote upgrade and download
lSupport status detection and fault report
lSupport to configure the work mode at the user port.
lSupport data encryption and decryption
lSupport 802.1Q VLAN
lSupport rich QinQ VLAN functions and IGMP Snooping
lSupport traffic rule to modify the related priority.
lSupport LED indication
lSupport to restore the factory settings
lSupport the remote reset and reboot
lSupport dying gasp outage alarm
lFully compatibility with OLT based=on=Broadcom/PMC/Cortina chipset.

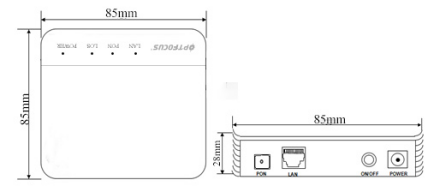

Chassis Dimension

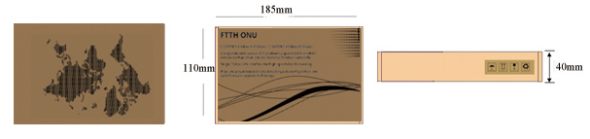

Package Dimension:

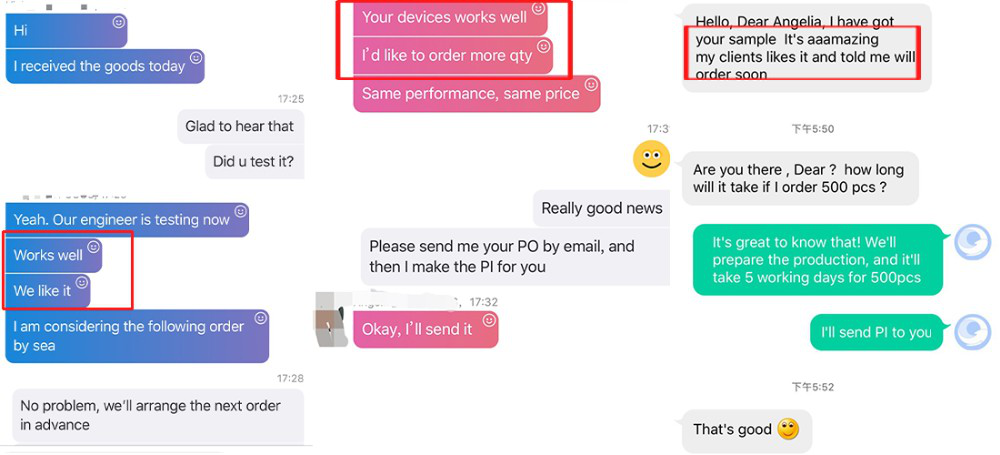

Customer Evaluation
OPTFOCUS
Shenzhen Optfocus Technology Co.,Ltd was established in 2009, OPTFOCUS is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx, Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.

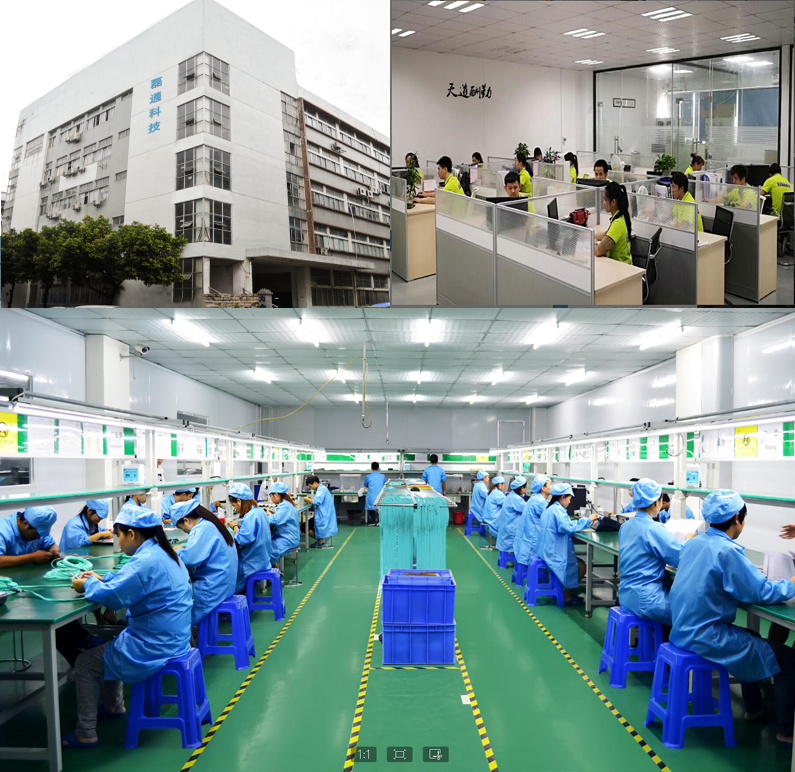

Factory
OPTFOCUS has two office center, The manufacturing center locates in Baoan Industrial area, and the marketing office center locates in Nanshan district of Shenzhen City. Manufacturing center’s land area around 2,000 M²,and it owns three production workshops. One workshop produce Fiber Optical Active Devices. The other two workshops are specialized in producing Passive Components.

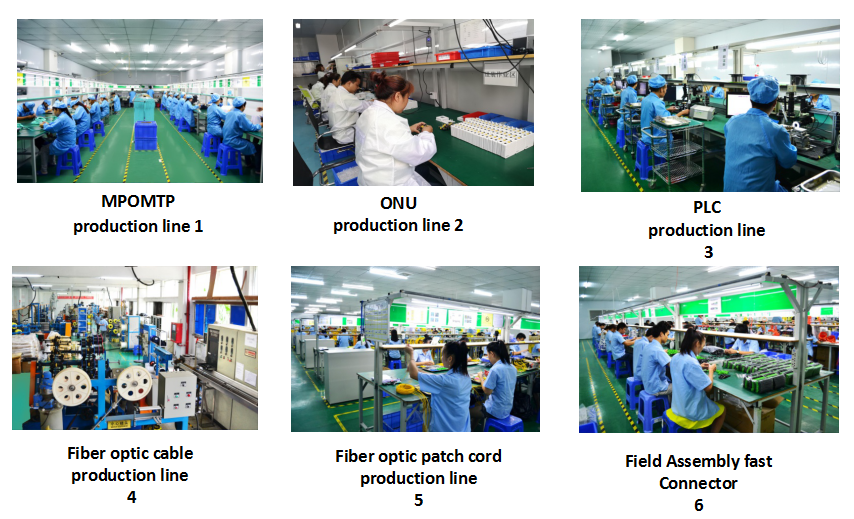

Production Line
