Best POE Switch 24 Port 100M CCTV IP Camera POE Switch with Uplink Gigabit SFP Port 24 Ports POE switch

OFS-PE-GSF2DT24-I
minimum order
1 piece
Country of Origin
SHENZHEN,GUANGZHOU,HONGKONG
Quantity
Contact Now
add to cart
  • Model Number:OFS-PE-GSF2DT24-I
  • Type:Fiber Switch
  • Place of Origin:Guangdong, China
  • Brand Name:Optfocus
  • Use:Ftth,Fttb,FTTC
  • Warranty Time:1 year
  • Network:Wireless Lan, Wired LAN
  • Item Number::OFS-PE-GSF2T24-I
  • Products Name::26-Port Gigabit PoE Switch with 24 PoE Ports and 2 Fiber Ports
  • Bandwidth::52Gbps (non-blocking)
  • MTBF::190,000 hours (about 21 years)
  • PoE Ports::24 ports support POE
  • PoE Port Power::15.4W for each POE port,300W for total
  • PoE Standard::IEEE 802.3af
  • PoE Feature::All ports support MDI/MDIX
  • Transmission Distance::Ethernet <100m, Optical fiber depend on SFP module
  • Warranty::2 year warranty

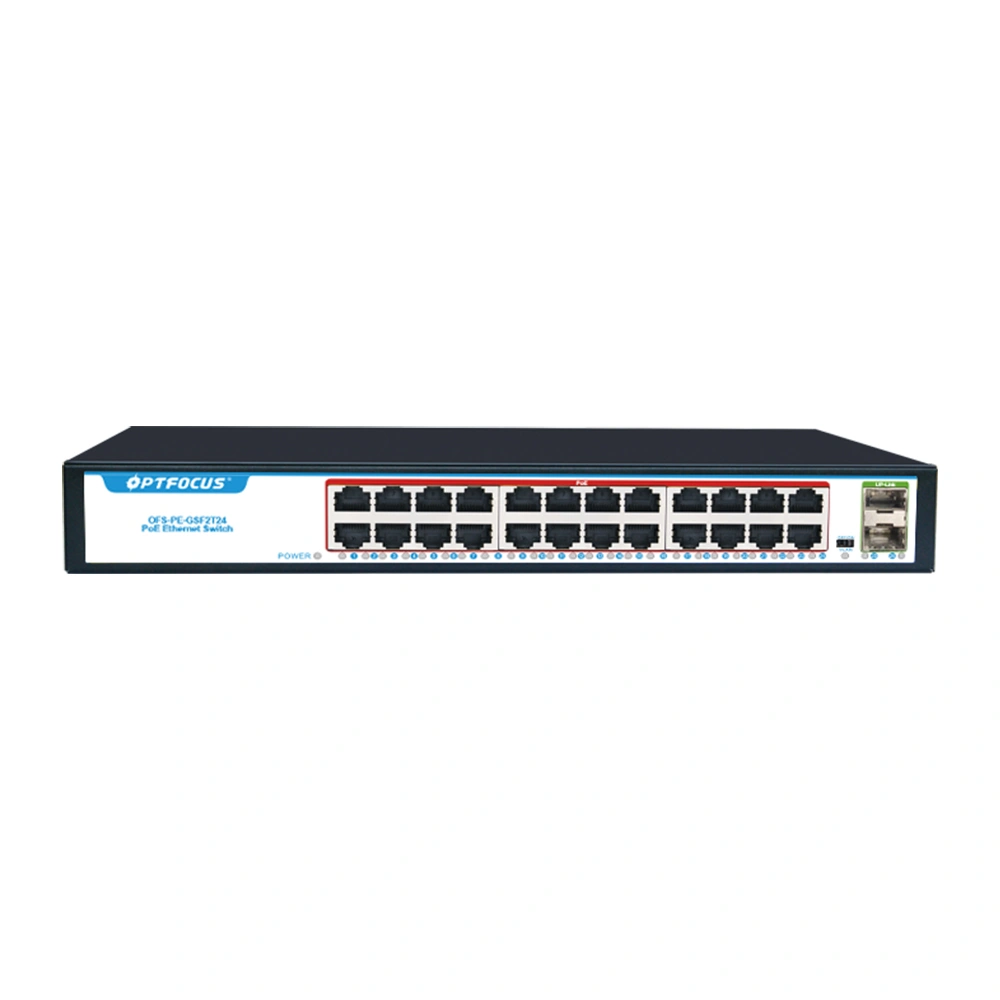

Best POE Switch 24 Port 100M CCTV IP Camera POE Switch with Uplink Gigabit SFP Port 24 Ports POE switch

OFS-PE-GSF2T24-I26ports PoE Switch
Description
The OFS-PE-GSF2T24-I PoE Switch with 24 Port 10/100/1000M PoE + 2 Port Gigabit SFP Uplink , using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af standard, this series of PoE Switch can be 10/100/1000M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af standards. The non-POE device intelligently detects no power and only transmits data.

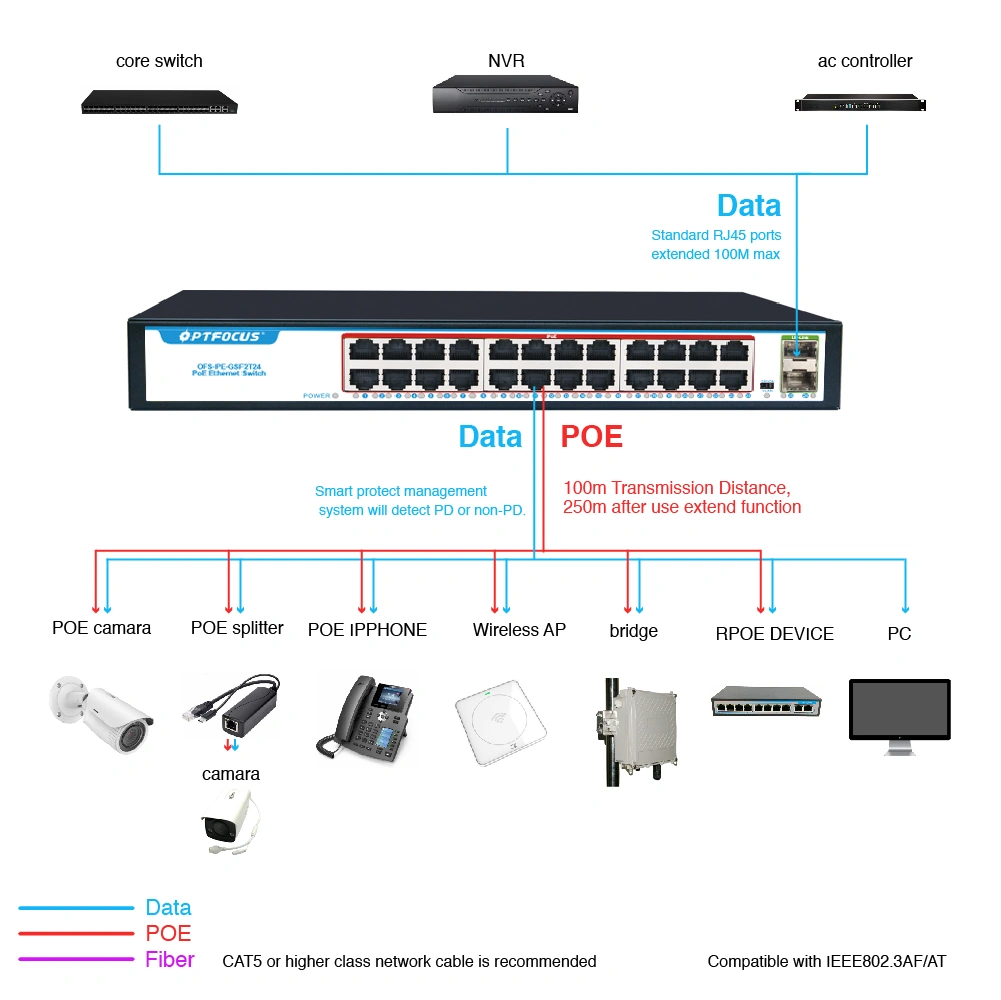

PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such asIPtelephone, wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power
supply are called receiving devices.This series of POE switches, using 24 POE ports + 2 uplink Gigabit Fiber port, the uplink port is to connect with the network equipment which provide data.
Features

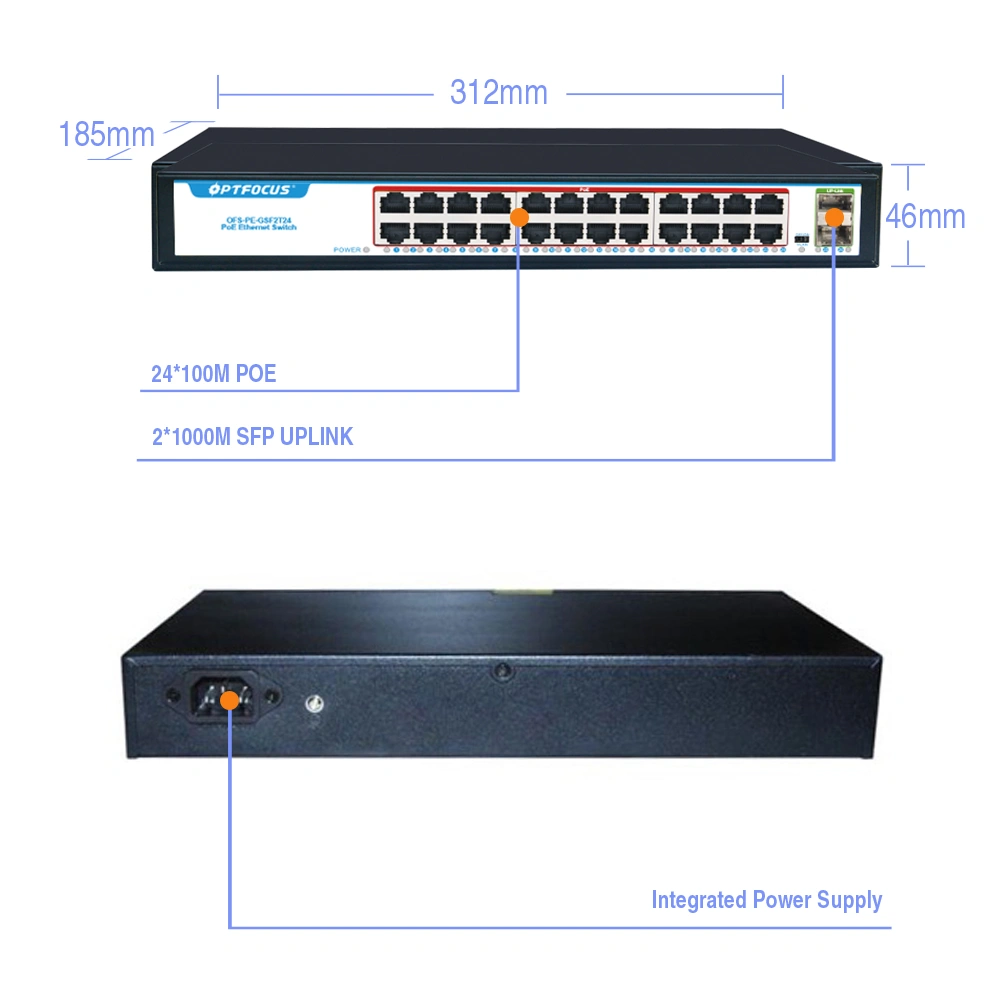

26-Port Gigabit PoE Switch with 24 PoE Ports and 2 SFP Gigabit Uplink Optical Ports
Supply power to 5 classes Ethernet wireless access points AP and network IP surveillance cameras
Port 1 to Port 24 supports IEEE802.3af power (each port maximum power is 15.4W)
24x 10/100/1000 Mbps ports + 2x SFP gigabit optical uplink ports
Compatible with IEEE 802.3 10i and IEEE 802.3u standard
The packet forwarding speed is 1.488Mbps of one wire-speed port
Port features with auto-flip(Auto MDI/MDIX)
Network port comes with lighting-proof (AC power port: difference module +/-2kV, common module +/-4kV)
All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
Standard 1U rack design, suitable for rack installation mode
Automatic adjustment, plug and play, no need software and protocol conversion
Features with QOS, RSETMSTP, IGMP etc. RADIUS authentication, 802.1X authentication and so on
