cctv poe switch RJ45 16 port network fiber switch media converter ftth for connecting with devices witch poe reverse

OFS-PE-GSF2DT16

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFS-PE-GSF2DT16
Type:Fiber Optical Switch
Place of Origin:Guangdong, China
Brand Name:Optfocus
Use:Fiber optical equipment
Warranty Time:1 year
Network:Wireless Lan
Transmission Rate::10/100/100M
Function::POE
Communication Mode::Full-Duplex & Half-Duplex
MAC Address::1K
Jumbo frames::1536bytes
Max Power Per Port::0~+75°C
Certification::FCC, ce, RoHS, CE FCC RoHS ISO9001:2015
Keywords::Ethernet Switch
Wavelength::1310nm
Distance:20KM

cctv poe switch RJ45 16 port network fiber switch media converter ftth for connecting with devices witch poe reverse

OFS-PE-GSF2DT16

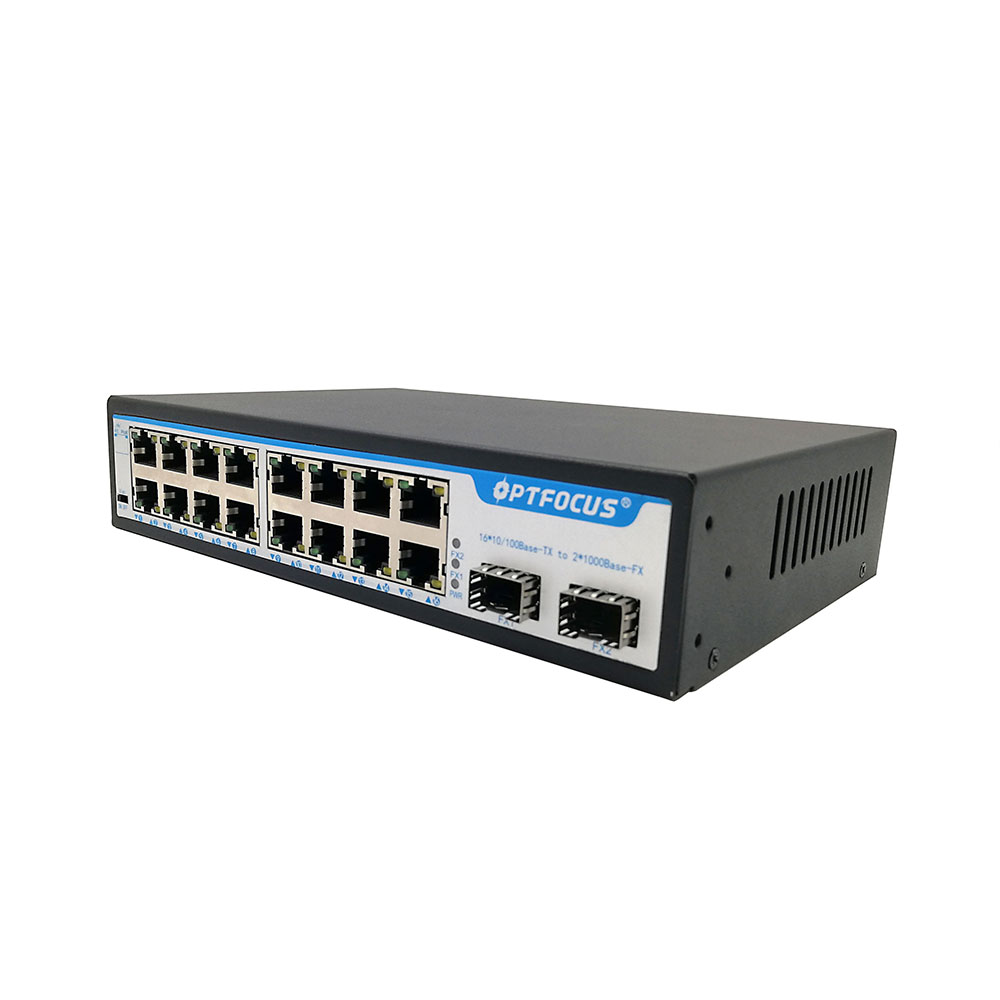

16ports100MPSE+2ports 1000M SFP FiberOptical Ethernet switch

Technical Specifications

Product Name	16-port10/100Mbps + 2-port 1000Mbps SFPFiber
Product Model	OFS-GSF2DT16
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX;IEEE802.3ab 100Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 2KM Single-mode: 20/40/60/80KM
Performance Specification	Bandwidth:7.2Gbps Packet Buffer Memory:2M Packet Forwarding Rate:148800pps/port MAC Address Table:1K/port
PoE Specification	PoE Standard: IEEE802.3af/ IEEE802.3at
	PoE ports:16 port support PoE
	Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at)
	PoE port Auto detect AF/AT devices
	Output Voltage: DC48V
	Power Pin Assignment:4/5+;7/8-
	Power Type: End-span( Mid-span optional)
Forwarding Mode	Store-and-Forward
LED Indicators	Power: PWR; Link;POE ; Link/Act
Power Supply	Input Voltage: DC52V (48~55V)

Feature:

l16Port10/100Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot

l16Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)

lAutomatic MAC address learning and aging

l10/100Mbps Auto-negotiation , auto-MDI-MDI-X

lLED indicators for monitoring power/link/activity

lSupports10/100Mbps-Full/Half-duplex

lSupports Wall-mount and DIN-Rail installation ,Optional.

lSupports Broadcast Storm Control

lSupports Relay output for power failure

lExcellent heat elimination without cooling fan.

lApply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

lHarsh environment or higher requirement

l-10℃-55℃operatingtemperature range.

OPTFOCUS

ShenzhenOPTFOCUS Technology Co., LTD, is specialized in fiber-optic network equipment business over 10 years. OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
