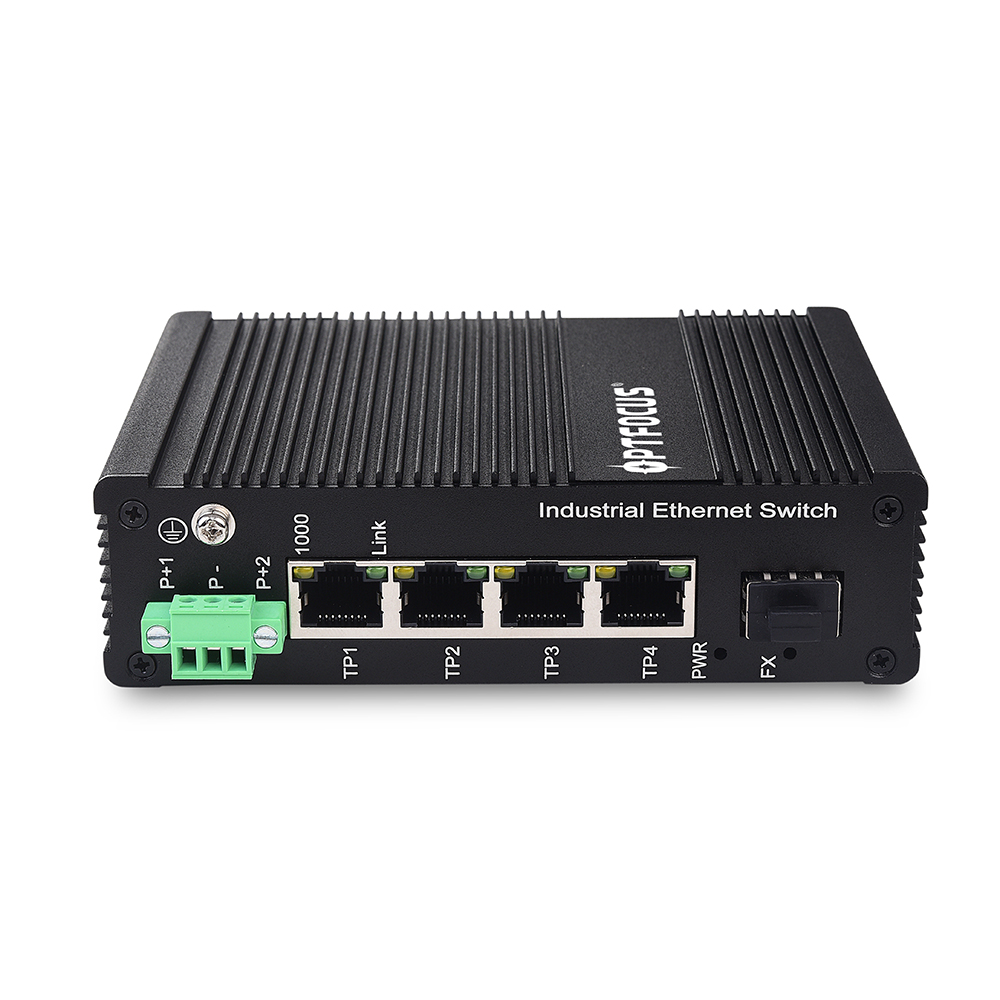

5 Ports poe Industrial Metal Case Ethernet Switch 10/100/1000Mbps Rj45 Signal Strengthen Vlan Network Switch 250 Meters Valid

Standards

IEEE Ethernet StandardsIEEE802.3, IEEE802.3u, IEEE 802.1ab,

IEEE 802.3x, IEEE 802.3ad,IEEE 802.3z IEEE 802.1d, IEEE 802.1p, IEEE 802.1q,IEEE 802.1w, IEEE 802.1s, IEEE 802.1x

Ports

10/100/1000MBase-T (4). 1000MBase-SFP SLOT

Switch Performance

ArchitectureStore-and-forward

Bandwidth12.0Gbps

Buffer4Mbps

Mac Address Table 8192

PoE( Need customer order will add POE module inside)

Standard IEEE802.3af/at

PSE Type End-span

Power Pin Assignment1 / 2 (+), 3 / 6 (-)

Each port up to 30W

Twisted Pair Transmission

10BASE-TCat3,4,5 UTP(100 meter). 100BASE-TX Cat5 or later UTP(100 meter)

Mechanical properties

IEC60068-2-6 (anti vibration).IEC60068-2-27 (anti shock).IEC60068-2-32 (free fall)

Anti-surge / Protection Level

Anti-surge:4KV 8/20us; Protection Level:IP40

IEC61000-4-28kV Contact Discharge,15kV

IEC61000-4-310V/m 80~1000MHz

IEC61000-4-4Power Line: 4kV; Data Line:2kV

IEC61000-4-5 Power Line,CM 4kV/DM 2kV

100A/m Continued; 1000A/m,1s to 3s

IEC61000-4-9 (Pulsed Magnetic Field) 1000A/m

IEC61000-4-10 (Damping Oscillation) 30A/m ,1MHz

IEC61000-4-12/18 (SHOCKWAVE) CM 2.5kV, DM 1kV

IEC61000-4-16 (Common Mode Conduction) 30V Continued; 300V,1s

FCC Part 15/CISPR22Class A

IEC61000-6-2(General Industry standard)

Warning & Monitoring

Relay output for fault event alarming. Syslog to record and view events .Event selection support

Power input

1A@24VDC NC or NO

Power

DC Power Input10 ~ 55Vdc

POE DC power Input48~55Vdc ( when choice POE module)

Power Consumption< 10W (without PoE output)

POE Budget120W

Overload Current ProtectionYes

Reverse polarity protectionYes

Mechanical

EnclosureIp40. Dimension (W*L*H)130mm * 94mm * 36mm.Weight0.5KG

Environmental

Operating Temperature -40 ~ +85Degree . Storage Temperature -40 ~ +85Degree

Operating humidity5%~95% non-condensing
