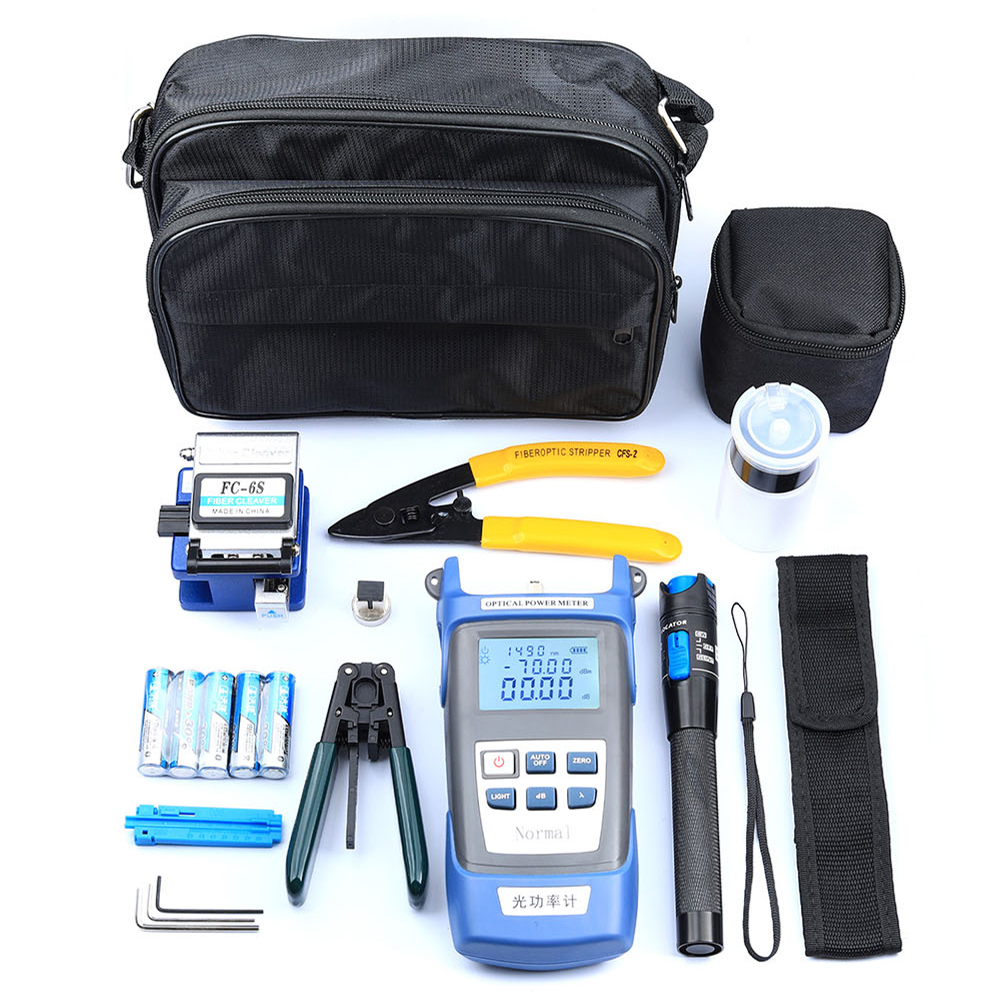

Optical fiber cabl kit FTTH Tool Kit Optical Power Meter Fiber Cleaver FC-6S and Visual Fault Lcator Miller clamp Wire strippers
OFS-FTTH-KIT
minimum order
1 piece
Country of Origin
SHENZHEN
Quantity
- Model Number:OFS-FTTH-KIT
- Type:Testers &Tools
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:10G Gigabit Ethernet, FTTH FTTB FTTX Network
- Warranty Time:1Year
- Network:Wireless Lan, Wired LAN, Ip, GPRS, wifi
- Pouducts name:FTTH Tool Kit
- Brand:OPTFOCUS
- Testing Wavelength:850,980,1300,1310,1490,1550,1625nm
- Fiber port Type:SC/FC/ST
- Cable color:Black
- Warranty:1years
- Dimensions:24*18*10mm
- Weight:1.2kg
Product Description
FTTH Fiber Optic Tool Kit with Fiber Cleaver -70~+10dBm Optical Power Meter Visual Fault Locator 10mw
Fiber Optic FTTH tool kit is a simple and convenient integration solution for FTTH fiber-to-the-home quick-connect construction,such as, stripping, fiber cutting, cleaning and testing. It is economical and practical, and is an ideal tool for construction operators.
Specification

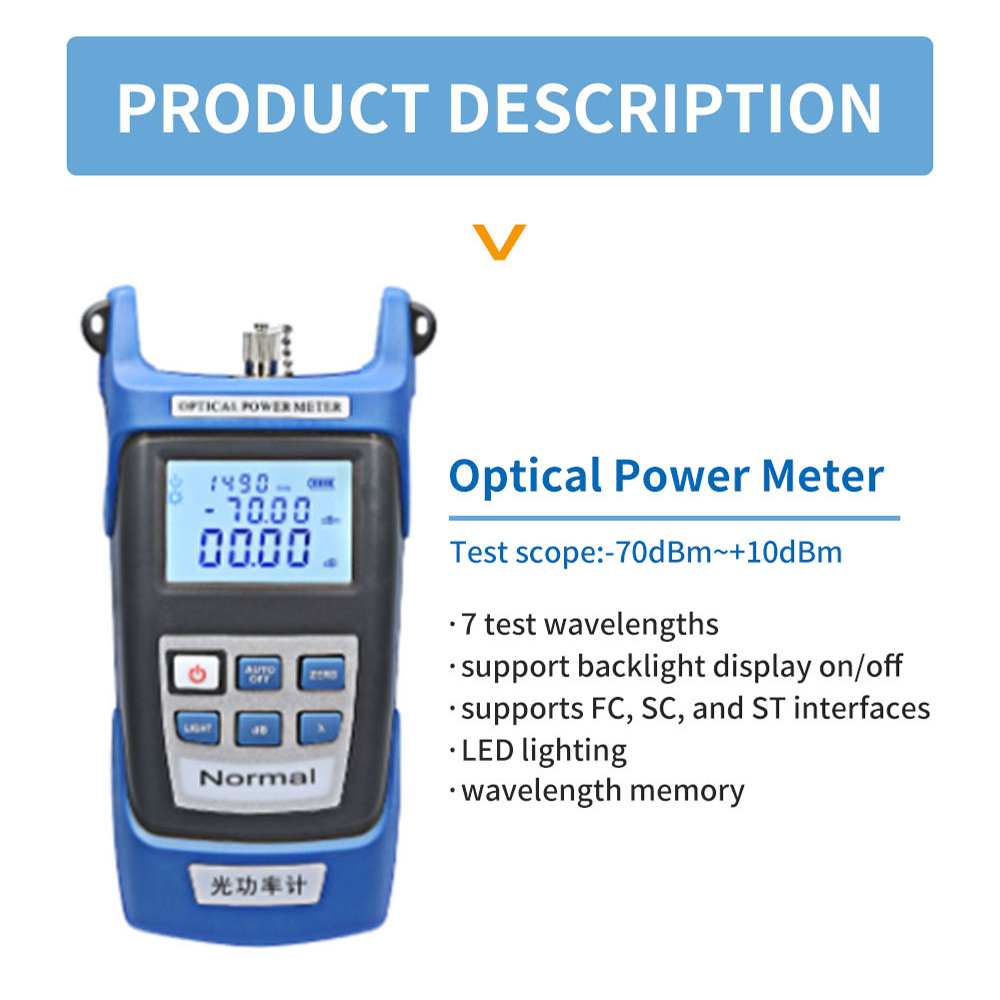

Optical Power Meter Connector Type | SC/FC/ST |
Power Meter | (-70)-(+10)dBm |
Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm |

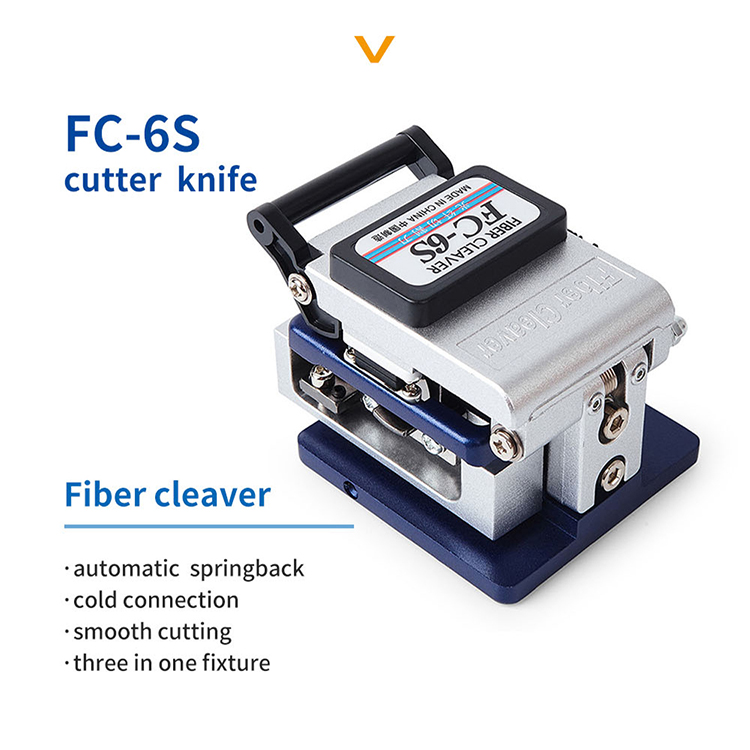

Fiber Cleave | FC-6S |
Applicable fibers | Singlemode |
Fiber Diameter | 125um |
Coating Diameter | 250um~900um |
Typical Cleave Angle | Within 1 Degrees |
Cleave Length | 9-18mm(Single Fiber-0.25mm coating) |
10-18mm(Single Fiber-0.9mm Coating) | |
Blade Life Time:36, 000 cleaves(3,000 per blade position) | |
Visual Fault Locator | 5MW |
Fiber Stripping Pliers | Two Hole Stripper Plier For Miller |
Warranty | 1 year |
Hot Sale Products
POE Switch 10G *8 SFP Port Fiber Switch EPON OLT 8 Ports GPON ONU
Main Features

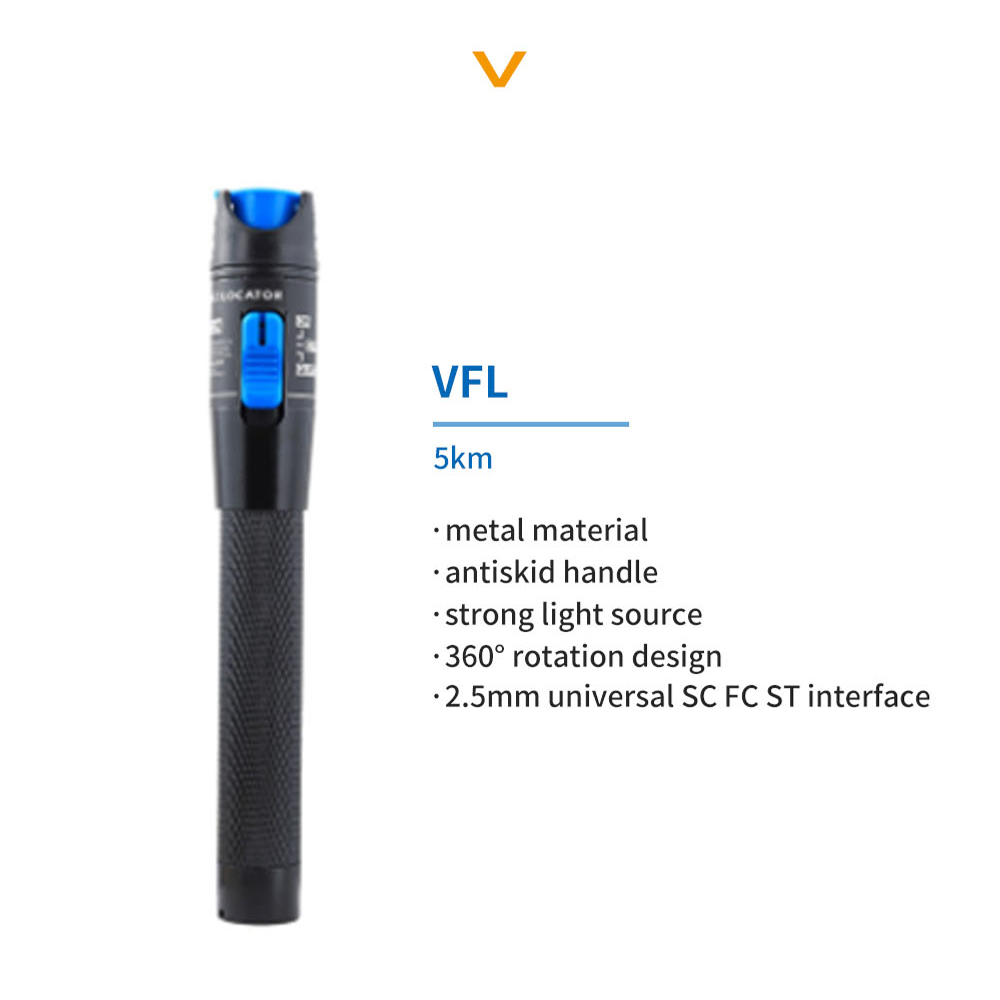

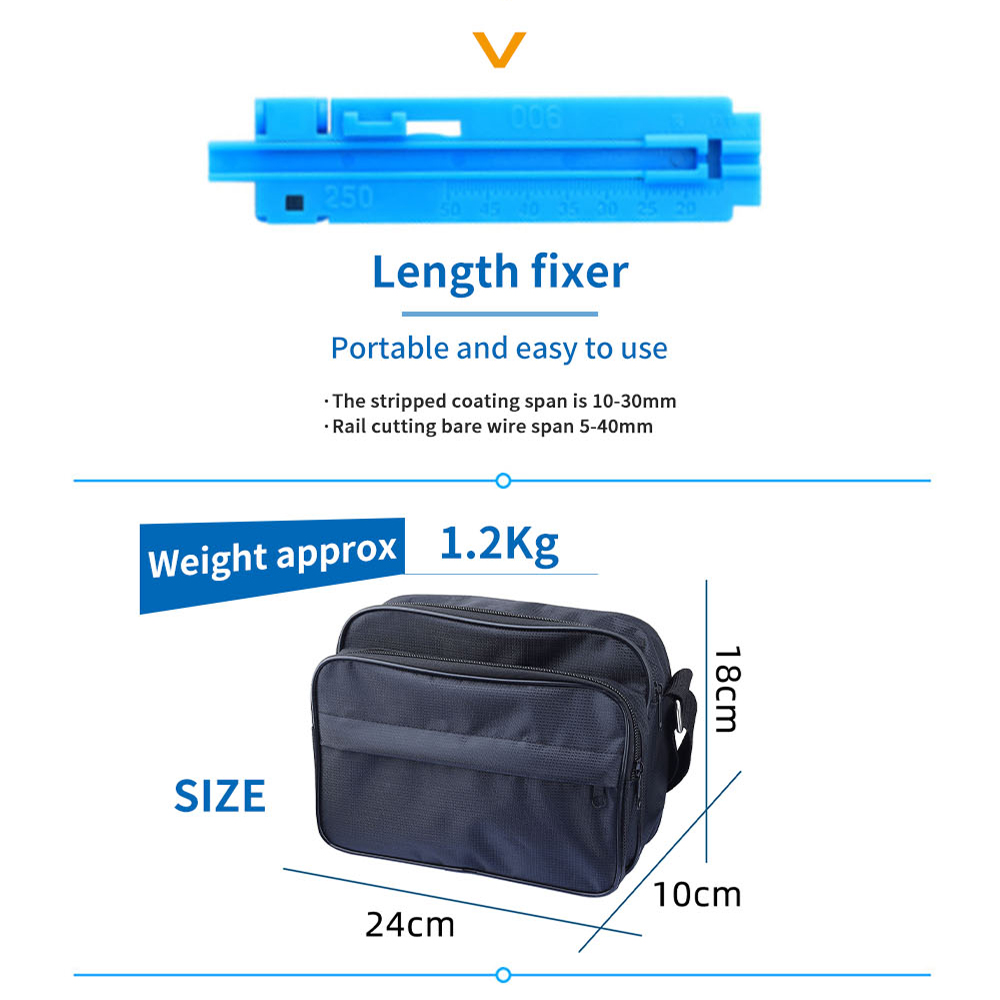

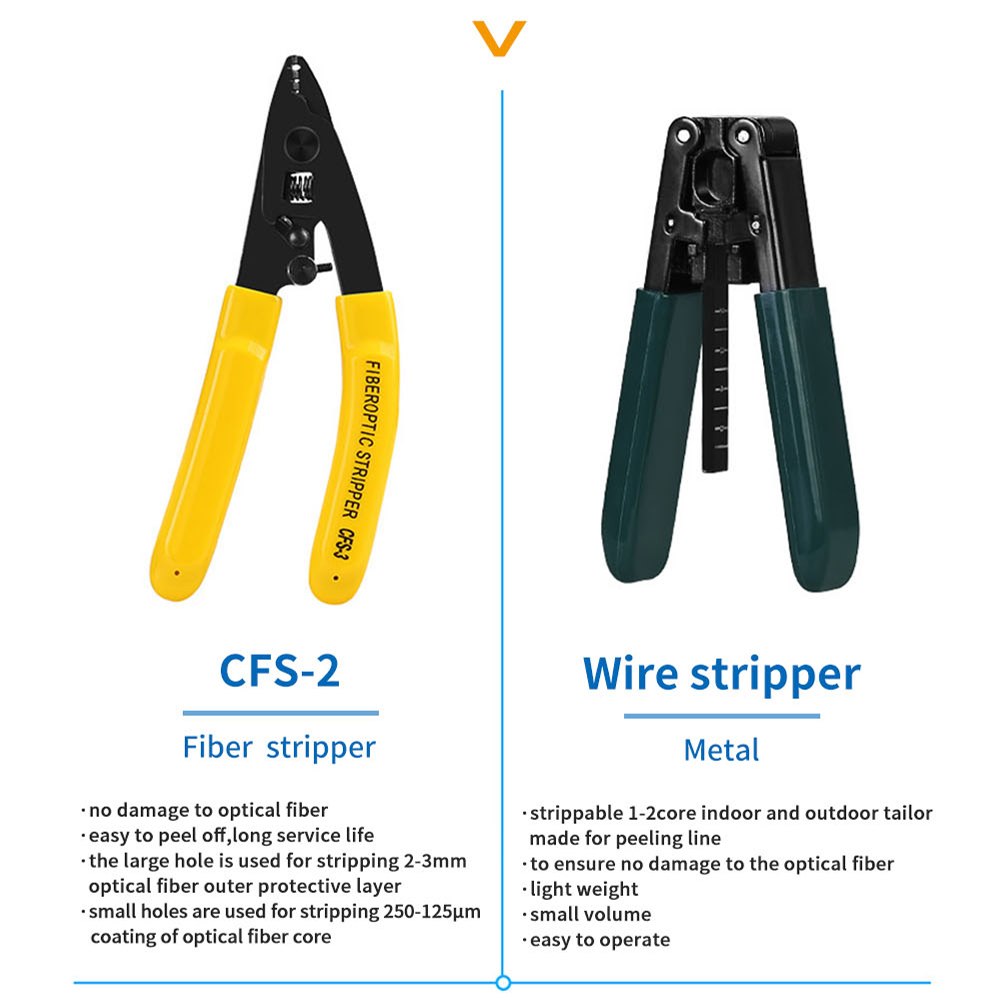

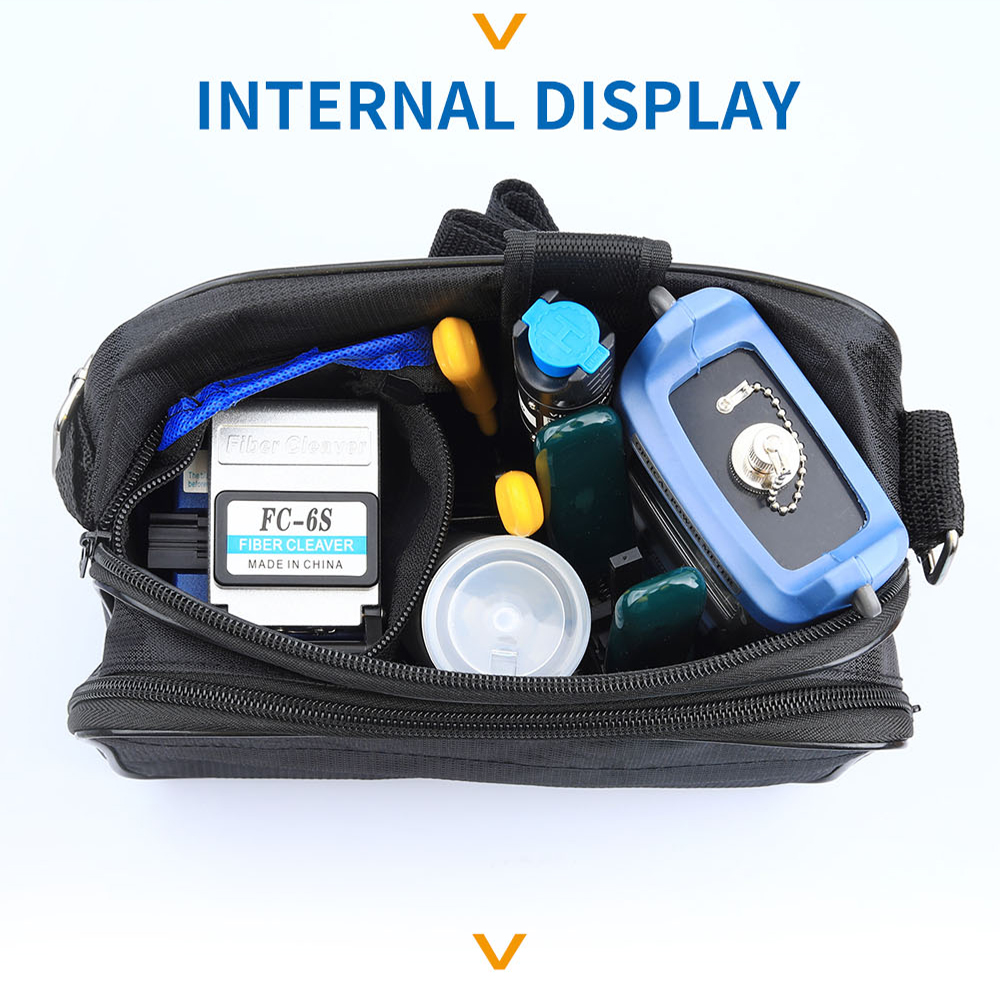

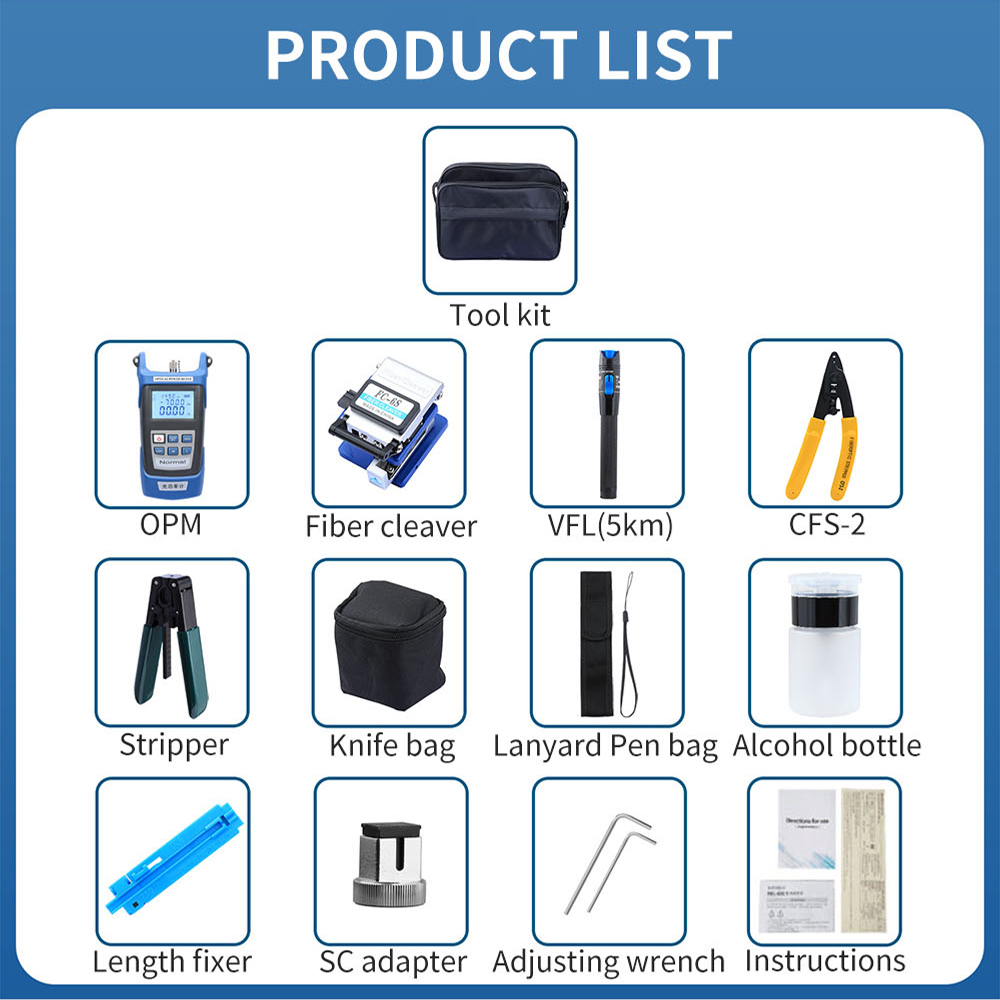

1.This is a Fiber Optic FTTH Tool Kit. 2.Optical Power Meter:Support 7 wavelength testing,support timing shutdown, with background lighting. 3.5km Red Light Pen:Sufficient light source,stable performance,metal material,universal interface. 4.Wire Stripper:Carrying scale,suitable for stripping the outer skin of 2mm and 3mm indoor optical cables. 5.Fiber Cleaver:Automatic springback, adopt original imported slide rail, ensure the stability and service life othe cutter. 6.Miller Clamp:Easy to scratch the coating,Do not damage the exposed fiber. 7.Fixed length device:Optical fiber quick connector essential tool cold connection, connection dual purpose. It is

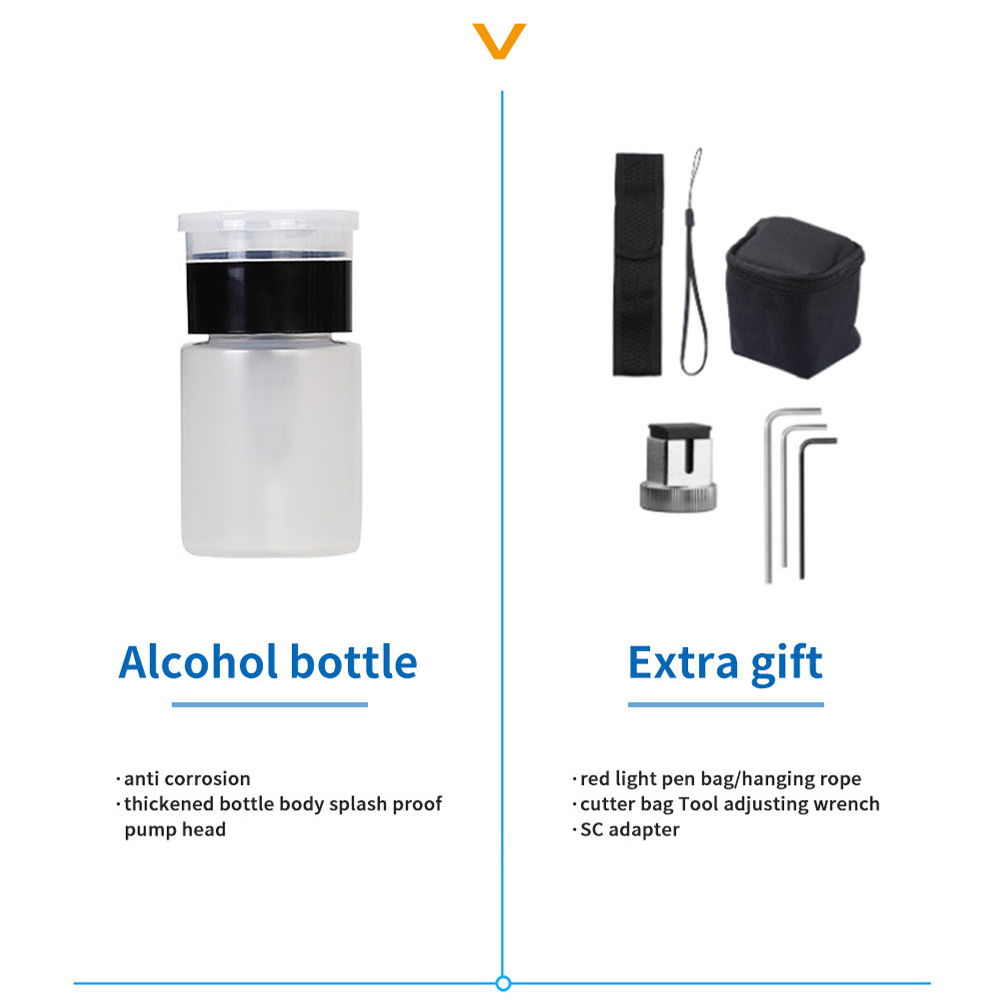

mainly used to peel rubber cover. 8.Alcohol Bottle:180ML pressed.Spill proof,drop proof.
You May Also Like

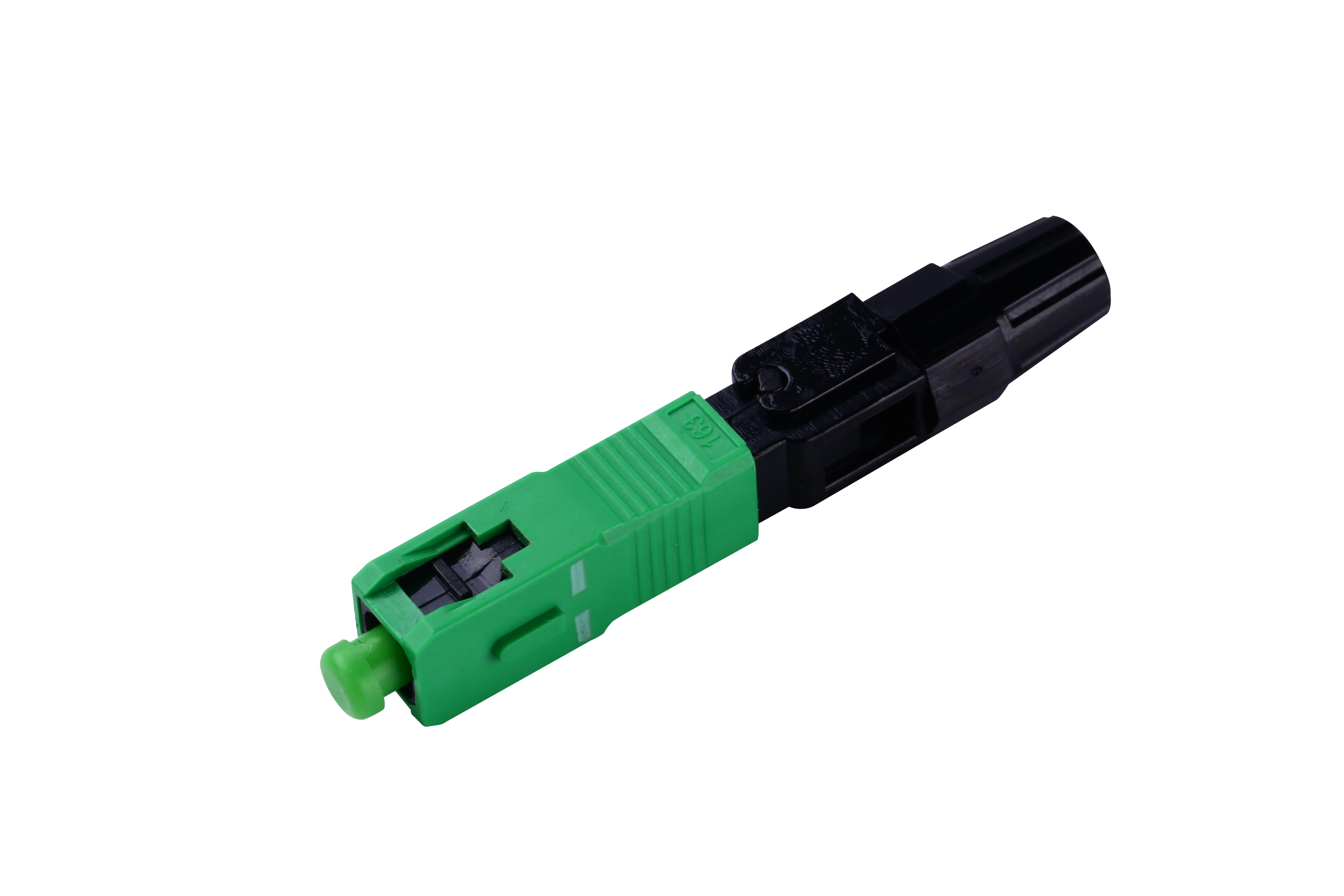

SC/APC Fast Connector

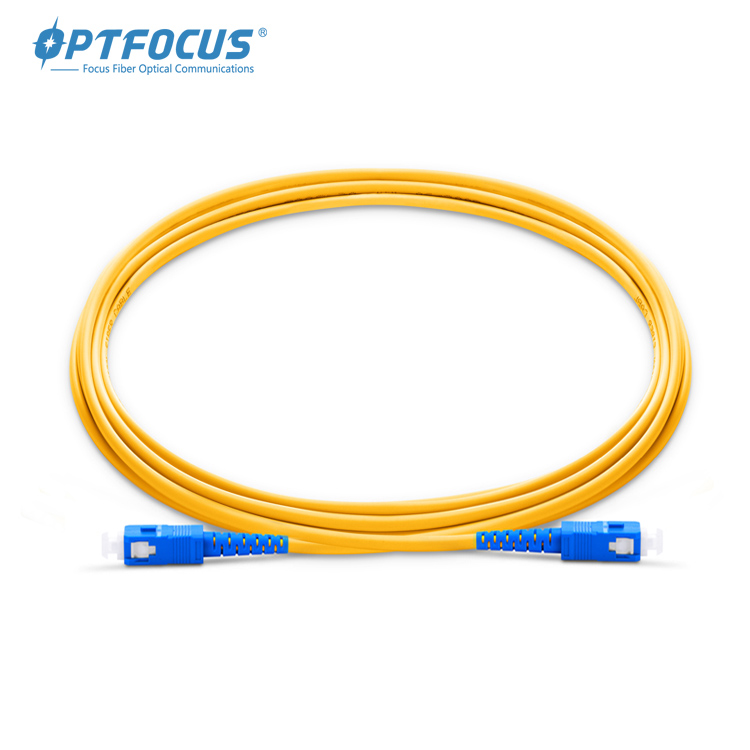

SC/UPC-SC/UPC Patch Cord

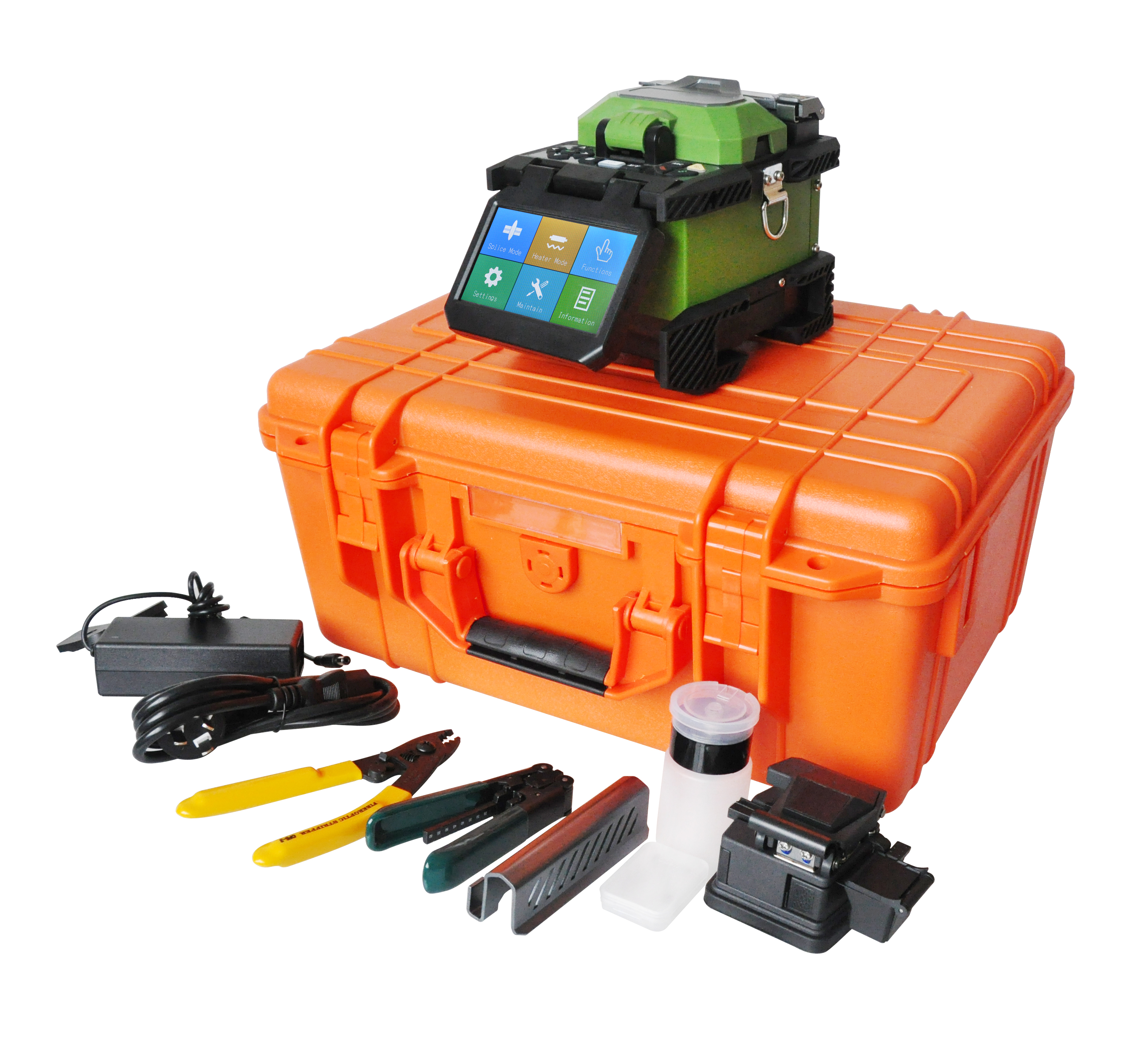

Fusion Splicer Machine
Why Choose US
Advantage of our company :
1 National High-tech enterprise certification;
2 Fiber Optical Innovative &production team Over 13 years;
3 Fiber optical active and passive components production Workshop;
4 Strict quality management system;
5 Professional One stop supply & service;
6 OEM&ODM available;
7 Reliable and Timely customer services;
Customer Evaluation

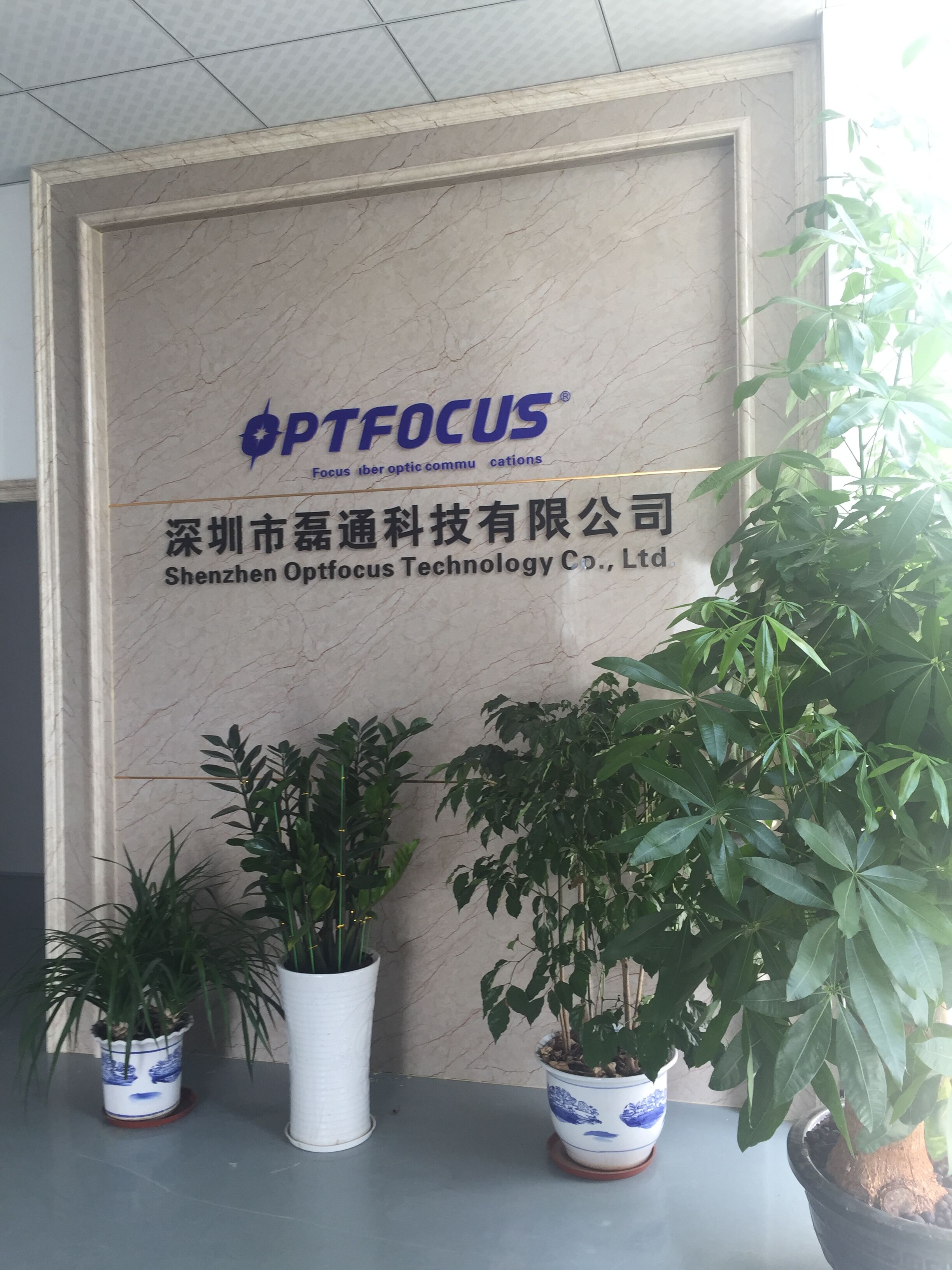

Company Profile

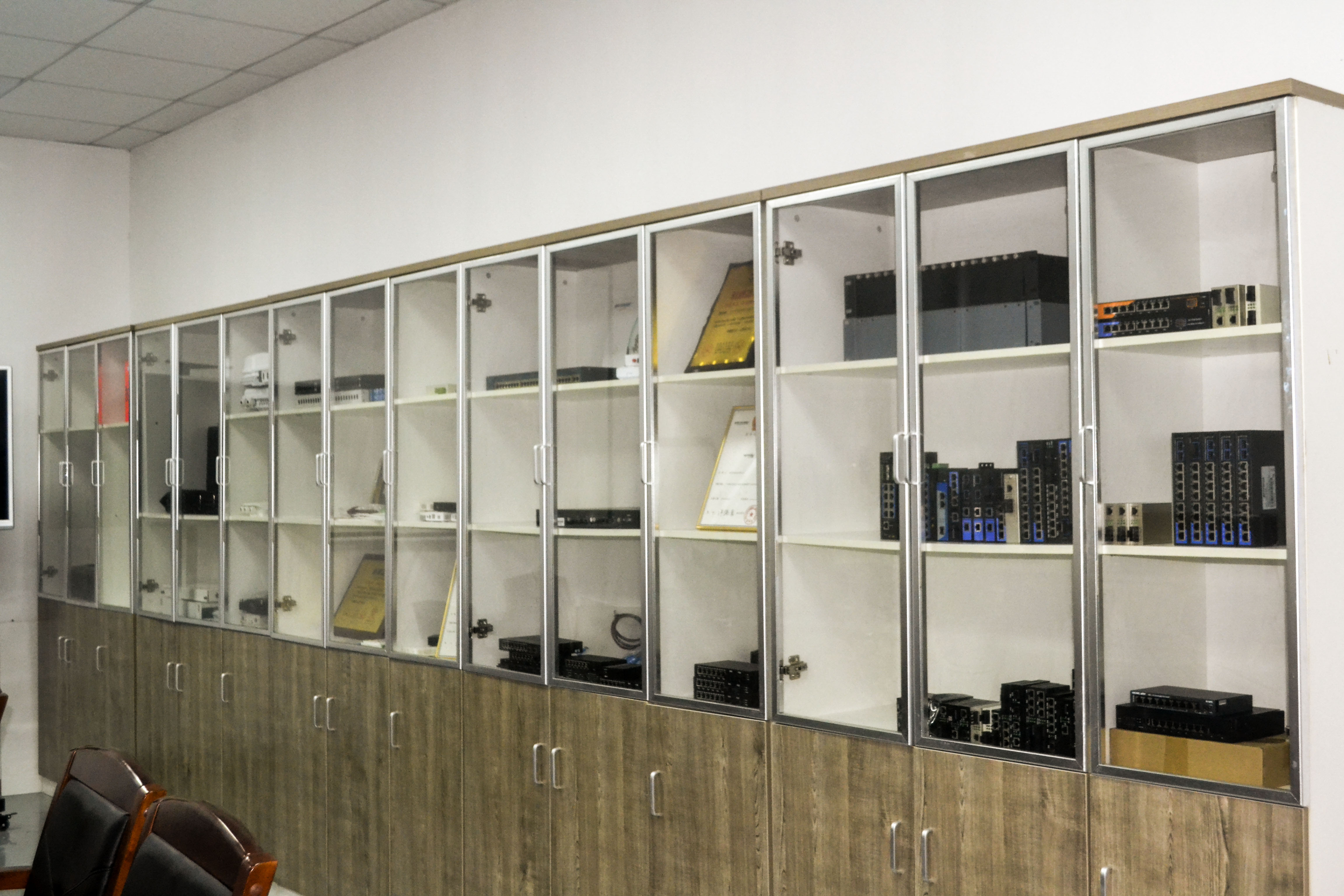

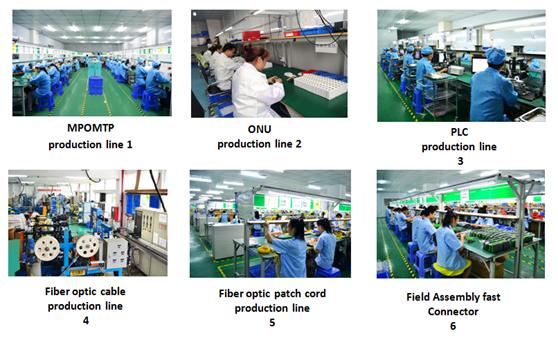

Production Line
