ready to ship! 3KM 10KM 20KM RX1550 1310 modulo sfp LC SFP module

OFSB-5312-20LDB, OFSB-3512-20LDB, 1.25G SFP Transceiver Module with DDM

minimum order

1 pair

Quantity

Contact Now

add to cart

Model Number:OFSB-5312-20LDB, OFSB-3512-20LDB, 1.25G SFP Transceiver Module with DDM
Type:Fiber Optic Transceivers
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS, OPTFOCUS or OEM
Use:FTTH
Certification:CE FCC RoHS ISO9001
connector type:LC
Wavelength:1310nm / 1550 nm
Compatible:Cisco, Arista Networks, Brocade, HP, Dell, H3C, Huawei, or Custom
Commericial grade:0 to 70 degree
Industry grade:-40 to +85 degree
Distance:20km
keywords:lc sfp module
No. of Fiber:1.

Product Description

lc sfp module

1.25Gbps SFP Bi-Directional Transceiver, 20km Reach 1310nm TX / 1550 nm RX

1.25Gbps SFP Bi-Directional Transceiver, 20km Reach 1550nm TX / 1310 nm RX

Product Feature

*Dual data-rate of 1.25Gbps/1.063Gbps operation
*1550nm DFB laser and PIN photodetector for 20km transmission

*Compliant with SFP MSA and SFF-8472 with simplex LC Receptacle

*Digital Diagnostic Monitoring: Internal Calibration or External Calibration
*Compatible with SONET OC-24-LR-1
*Compatible with RoHS
*+3.3V single power supply
*Operating case temperature: standard : 0 to +70°C

*With DDM(digital Diagnostic Monitoring)

Application

*Gigabit Ethernet

*Fiber Channel

*Switch to Switch interface

*Switched backplane applications *Router/Server interface

*Other optical transmission systems

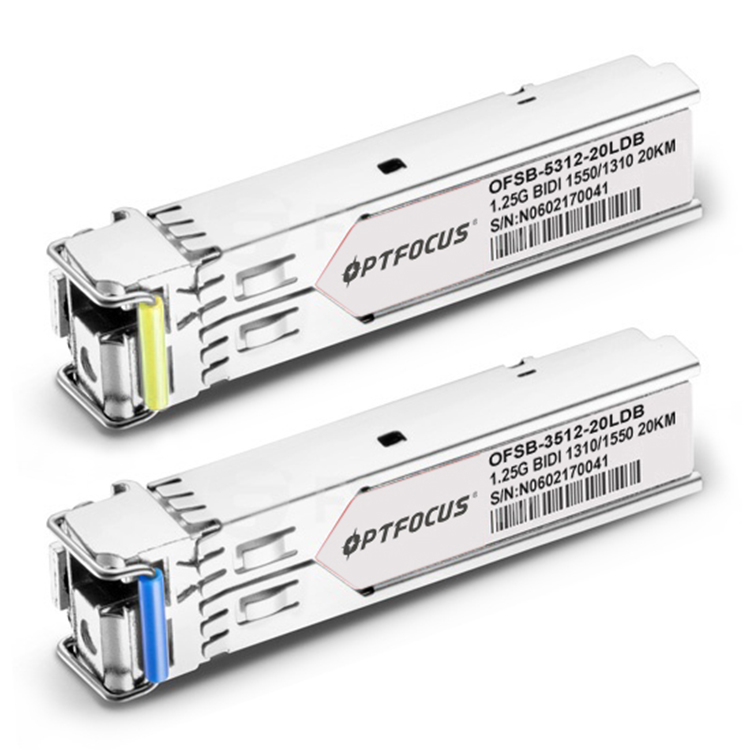

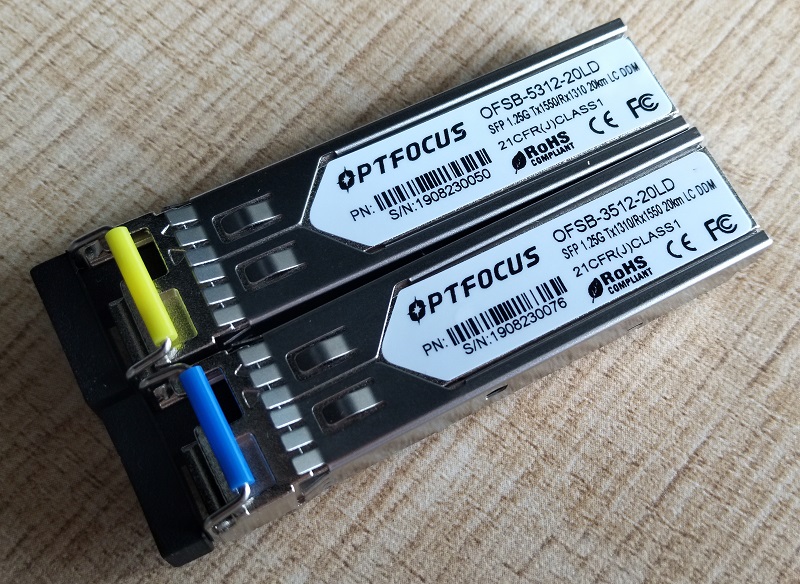

Product Image

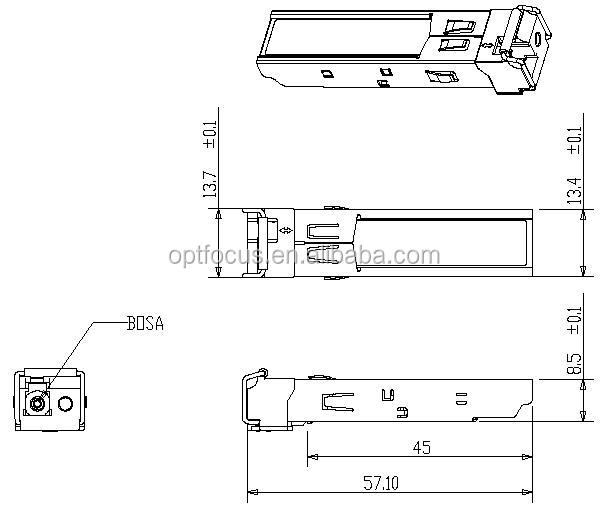

Mechanical Dimensions

SPECIFICATION

Parameter	Range	Unit	Accuracy	Calibration
Temperature	0 to +70	°C	±3°C	Internal / External
Voltage	3.0 to 3.6	V	±3%	Internal / External
Bias Current	0 to 100	mA	±10%	Internal / External
TX POWER	-9 to -3	dBm	±3dB	Internal / External
RX POWER	-23 to -3	dBm	±3dB	Internal / External
