10/100/1000M single fiber media converter sc 20km rj45 ethernet to fiber converter

OFS-GWS01/02-20

minimum order

1 pair

Quantity

Contact Now

add to cart

Model Number:OFS-GWS01/02-20
Type:Optical Fibers
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS
Product name:10/100/1000M Media Converter
Product Model:OFS-GWS01/02-20
Connector:Dual Fiber: 1* 1000Mbps,SC/ST/FC Optional
Forwarding Mode:Store-and-Forward
Forwarding Rate:1488000pps/port
Operating standard:EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power:External
Power consumption:2.5W
LED:Power,Link/Act, TX 1000,100,FDX, Link/Act.
KEYWORDS:eithernet to fiber converter
No. of Fiber:1

Contact

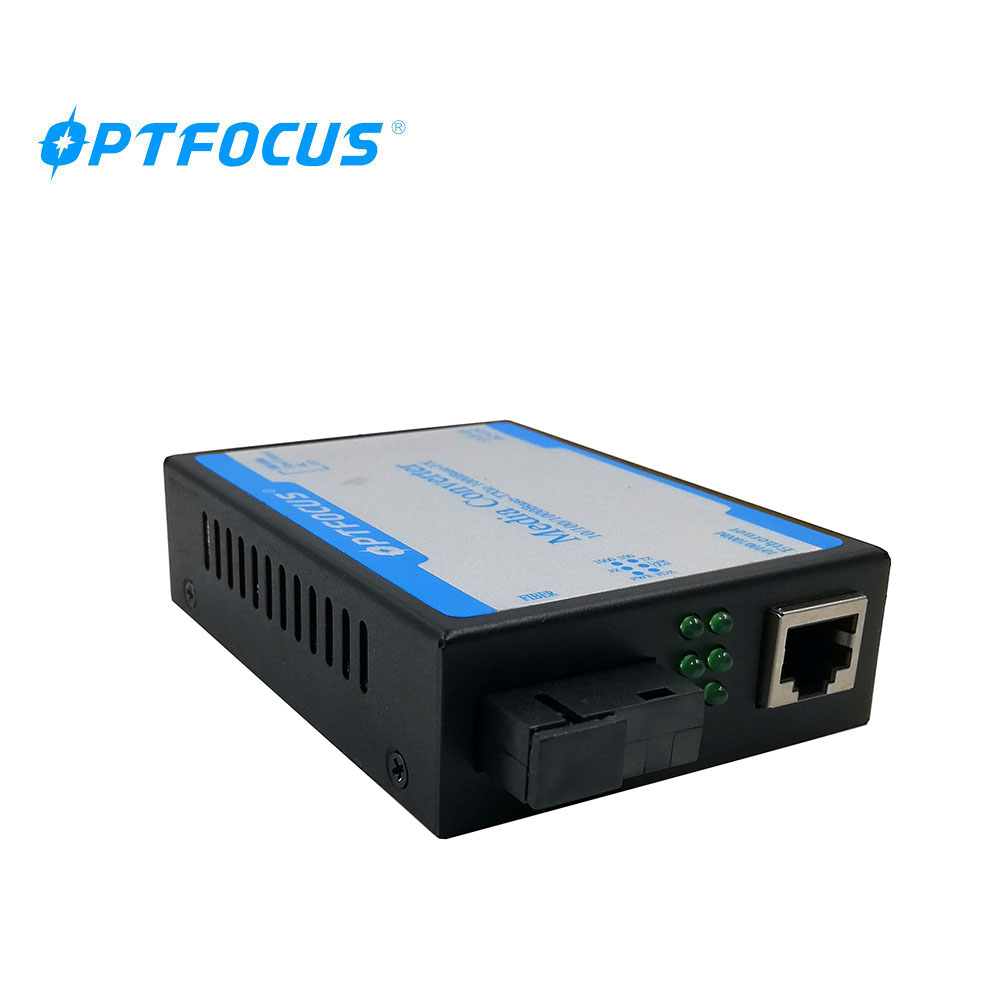

10/100/1000M single fiber media converter sc 20km rj45 ethernet to fiber converter

Product Description

OFS-GWS01/02-20 Series

LFP&Jumbo Frame Support 10/100/1000M Ethernet Fiber Media Converter

OFS-GWS01/02-20 Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100/1000M UTP interface (TX) and 1000M Fiber interface (FX). The traditional 10/100/1000M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.OPTFOCUS Series Converters could be used alone;

The converters can be used as a stand-alone unit or as a slide-in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis.

Technical Specifications

Product Name		10/100/1000M Media Converter
Product Model		OFS-GWS01/02-20
Connector		Dual Fiber: 1* 1000Mbps,SC/ST/FC Optional
		RJ45: 1*10/100/1000Mbps,Auto MDI/MDI-X
Network Media		10BASE-T: Cat3,4,5 UTP(≤100 meter)
		100BASE-TX: Cat5 or later UTP(≤100 meter)
		1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media		Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
		Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding Mode		Store-and-Forward
Forwarding Rate		1488000pps/port
Operating standard		EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power	external	Input:AC 100~250VOutput:DC 5V 1A ,(default). or Input:DC:-36V~-72V;Output:DC 5V 1A .(Optional)
		USB power supply(Optional).
Power consumption		2.5W
LED		Power,Link/Act, TX 1000,100,FDX, Link/Act.
Working Environment		Working temperature: -10~55℃ ;
		Storage temperature: -20~75℃
		Relative Humidity: 5%~95 %( no condensation)

Features:

1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP
10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard
Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex
Supporting 1552 bytes packet
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Data Transfer Rate: - TP: 10/100/1000Mbps - FX: 1000Mbps
Duplex mode support: - Full or half-duplex mode by Auto-Negotiation (TP)
LED indicators: Power, FX Link/Act, TX 1000, 100,TX FDX, TX Link/Act
Supports link fault pass through function.
Design of internal or external power supply for selection by end-users
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

Chassis Dimension

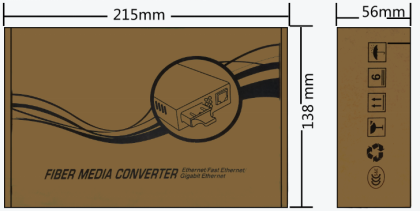

Package Dimension

More information

Installation	DIN-Rail or Wall mounts,Optional,Default device is not
Packing List	1× Media Converter 1×User Manual/Certificate of quality/Warranty card 1×power adapter
MTBF	100,000 hours
Weight & Size	Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H): 94.57026mm Packing size(L×W×H):21513856mm
Warranty	1-years

DIP Switch:

SW1	ON	Enable LFP
SW1	OFF	Disable LFP
SW2	ON	Cut-through
SW2	OFF	Store-and-Forward
SW3	OFF	No function
SW4	OFF	No function

Ordering Information:

Model	Product description
OFS-GWS01- 20	10/100/1000M singlemode Converter,single fiber, 1310nm,SC,20km,external PS
OFS-GWS02- 20	10/100/1000M singlemode Converter,single fiber, 1550nm,SC,20km,external PS
OFS-GWS01/02- XX	10/100/1000M singlemode Converter,single fiber, must be used and orderd in couples. One set of GWS01 must be connected with another set of GWS02 for using. GWS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm. The max distance of fiber is up to 20, 40, 60, 80,100km,“XX”is the amount of distanc,external PS
